890-113 WAGO 3 Pole WINSTA MINI Plug Strain Relief 16A
by Wago
SKU 489423
MPN: 890-113
Availability:
34 in stock
Original price
£4.48
-
Original price
£4.48
Original price
£4.48
£4.48
£4.48
-
£4.48
Current price
£4.48

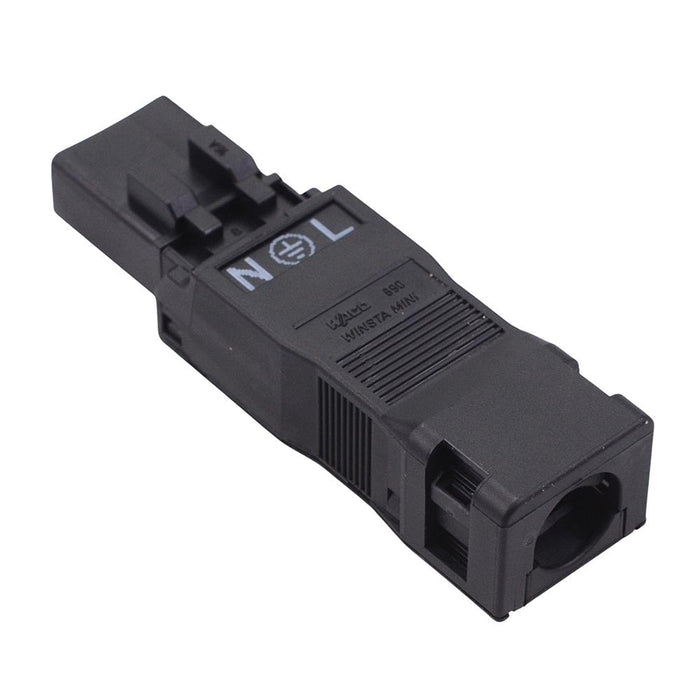

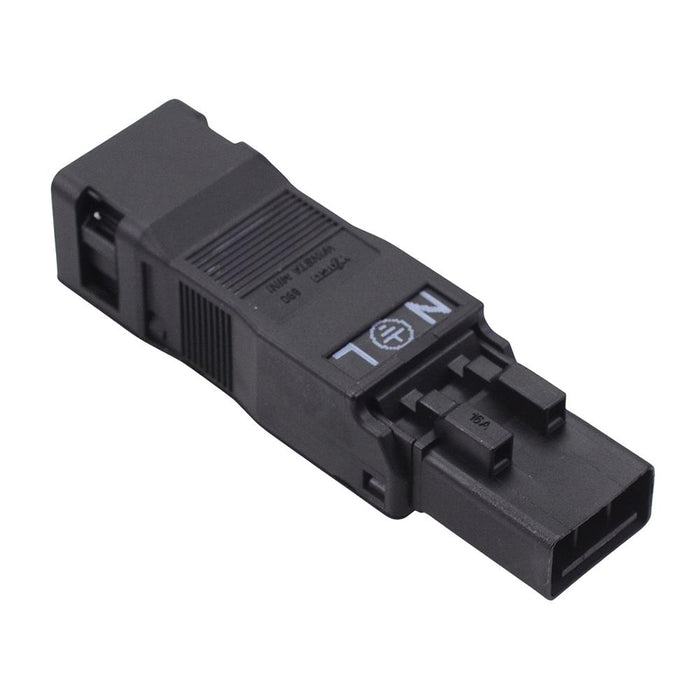

The 890-113 is a 3 pole plug with strain relief from the WAGO WINSTA MINI series of connectors. The plug features A coding and is compatible with solid and stranded conductors up to 1.5mm². The connectors utilise Push-in CAGE CLAMP® technology providing a secure connection to the wire and fast installation. The current rating is 16A making it suitable for a wide range of applications including lighting, control cabinets and PCBs.
3 poles Push-in CAGE CLAMP® technology Coding: A Current rating: 16A Nominal voltage: 250V Rated surge voltage: 4kV Wire size: 0.25-1.5mm² 22-16AWG Wire strip length: 9mm Pin spacing: 4.4mm Width: 17.9mm Height: 14mm Depth: 63.6mm
Specification
| Back Order Lead Time | 5 Days |
| Contact Material | Tin Plated Copper |
| Contact Pitch | 4.4mm |
| Current Rating | 16A |
| Gender | Male |
| Housing Material | PA66 |
| Mounting Type | Cable |
| Number of Ways | 3 |
| Operating Temperature | -35°C to +85°C |
| Protection Level | IP40 |
| Termination Method | Push-In |
| Voltage Rating | 250V |
| Wire Range | 0.25mm² to 1.5mm² |
