887-800 WAGO 115pcs 2773 Push Wire Splicing Connectors Assorted Box
by Wago
SKU 489310
MPN: 887-800
Availability:
Only 5 left!
Original price
£42.72
-
Original price
£42.72
Original price
£42.72
Inc VAT
£42.72
-
£42.72
Current price
£42.72
Inc VAT

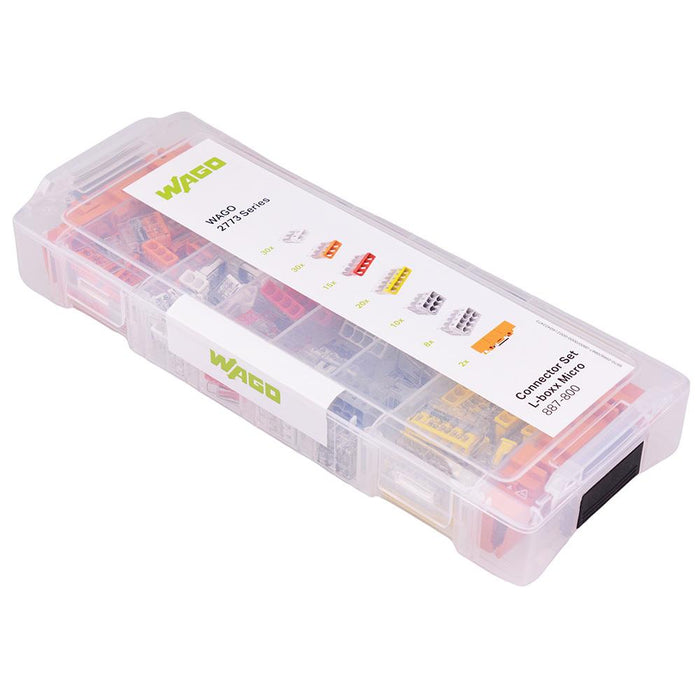

115 piece assorted box of the Wago 2773 series push-wire splice connectors and mounting carriers, housed in a handy compartment case. The 887-800 assortment compromises of the most popular sizes making it a cost effective solution for electricians, hobbyists and engineers.
The 2773 series by Wago are new and improved push wire connectors featuring a more compact design than the 2273 series and push-in termination up to 8 solid and stranded conductors. The connectors are compatible up to 4mm2 cable size and feature a transparent housing showing that the conductor is fully inserted.The connectors are rated up to 32A 450V and meet most major approvals.
Voltage rating: 450V Current rating: 32A Solid conductor: 20-12AWG 0.75-4mm2 Stranded conductor: 18-12AWG 1.5mm-4mm2 Strip length: 13mm CB, UL, ENEC, KEMA approved
What's included?30pcs 2773-402 30pcs 2773-403 15pcs 2773-404 20pcs 2773-405 10pcs 2773-406 8pcs 2773-408 2pcs 2773 mounting carrier
The 2773 series by Wago are new and improved push wire connectors featuring a more compact design than the 2273 series and push-in termination up to 8 solid and stranded conductors. The connectors are compatible up to 4mm2 cable size and feature a transparent housing showing that the conductor is fully inserted.The connectors are rated up to 32A 450V and meet most major approvals.
What's included?
Specification
| Back order lead time | 5 Days |
| Colour | Yellow |
| Contact material | Copper |
| Current rating | 32A |
| Housing material | PC |
| Mounting type | Cable Mount |
| Operating temperature | 85°C Maximum |
| Termination method | Push In |
| Voltage rating | 450V |
| Wire range | 0.75-4mm² |
