8636CDBK APEM On-On 6.35mm Sealed Push Button Switch SPDT
by APEM
SKU 487686
MPN: 8636CDBK
Availability:
Out of stock
Sold out
Original price
£10.65
-
Original price
£10.65
Original price
£10.65
Inc VAT
£10.65
-
£10.65
Current price
£10.65
Inc VAT

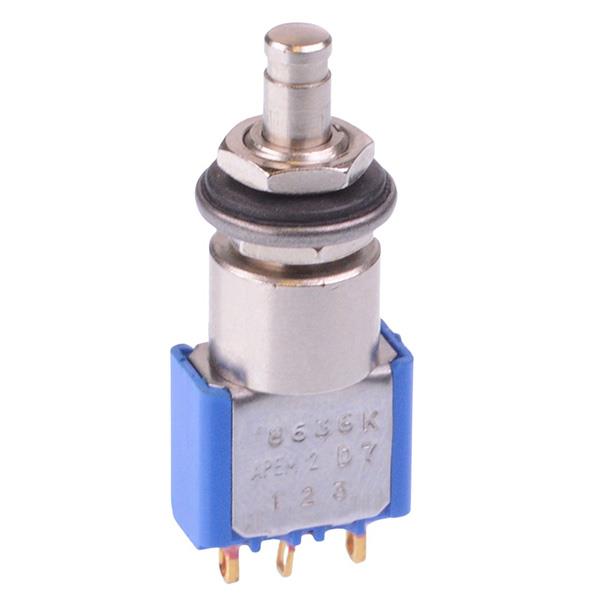

The 8636CDBK is a push button switch featuring 6.35mm threaded bush and SPDT contacts, manufactured by APEM. The switch features solder terminals and is suitable for a wide range of panel mount applications.
SPDT contacts On-On function 6.35mm threaded bushing Gold plated brass terminals Solder terminals Panel cut-out: 6.5mm Rating: 0.4VA 20VAC/DC Front panel sealing
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 30,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Product series | 8000 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 20VAC/DC |
