8632A APEM On-(On) Momentary Miniature Push Button Switch SPDT 4A 30VDC

by APEM
SKU 487133

MPN: 8632A

Availability:
21 in stock
Original price £9.97 - Original price £9.97
Original price
£9.97 Inc VAT
£9.97 - £9.97
Current price £9.97 Inc VAT

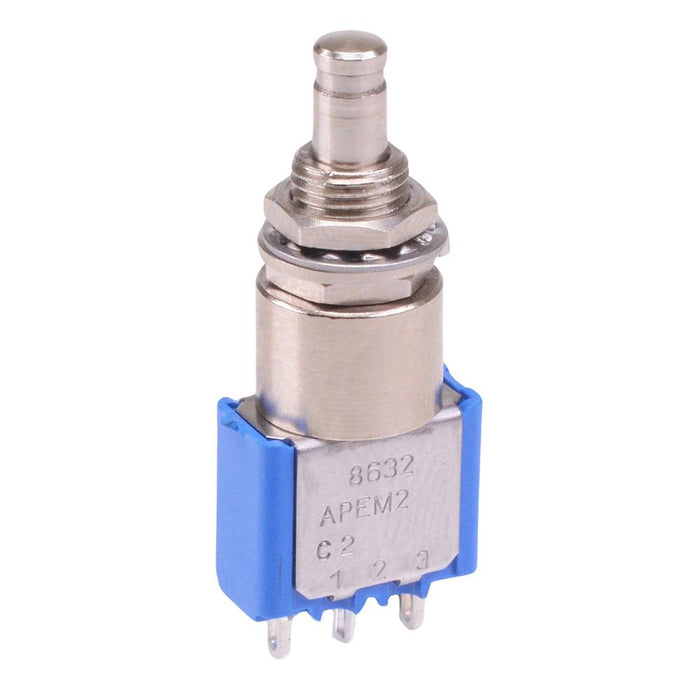

The 8632A is a momentary miniature push button switch featuring SPDT contacts and standard 6.35mm bushing. The switch features a 4A 30VDC rating and solder lug terminals making it suitable for a wide range of low voltage applications.

  • On-(On) momentary action
  • SPDT contacts
  • 6.35mm bushing
  • Solder lug terminals
  • Rating: 4A 30VDC, 6A 125VAC, 3A 250VAC
  • Panel cut-out: 6.5mm
  • Dimensions: 35.2 x 10 x 13.2mm (height x width x depth)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Silver
    Contact rating 4A 30VDC, 6A 125VAC, 3A 250VAC
    Current rating 4A
    Electrical life 30,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Product series 8000
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 30VDC
