8632A-6X718 APEM On-(On) Momentary Miniature Push Button Switch SPDT 4A 30VDC APEM
by APEM
SKU 489897
MPN: 8632A-6X718
Availability:
50 in stock
Original price
£6.59
-
Original price
£6.59
Original price
£6.59
Inc VAT
£6.59
-
£6.59
Current price
£6.59
Inc VAT

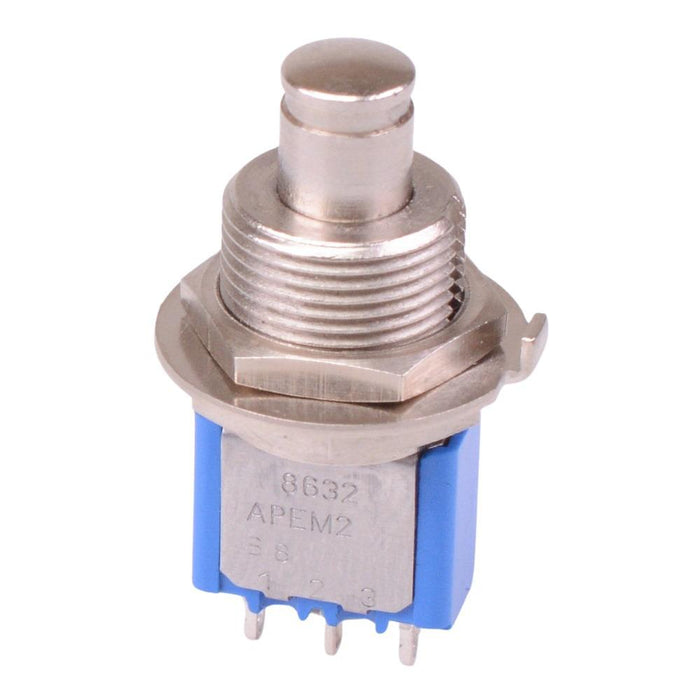

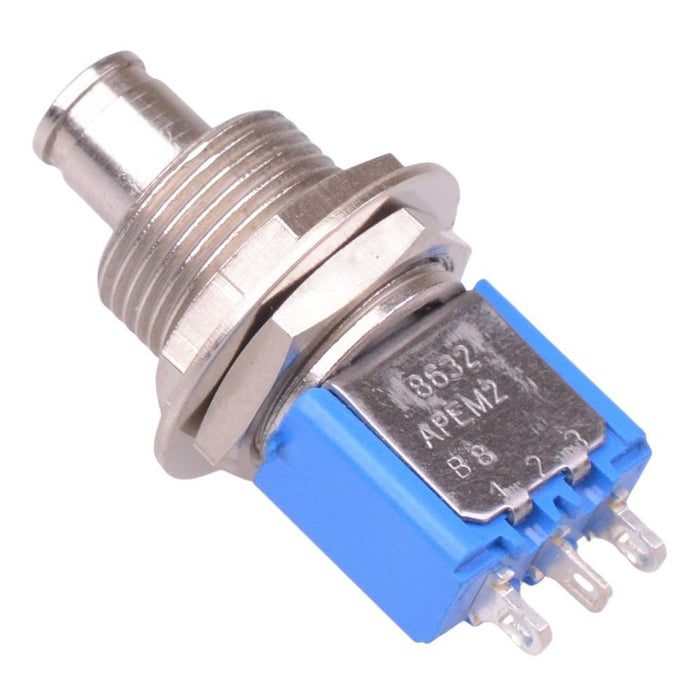

The 8632A-6X718 is a momentary miniature push button switch featuring SPDT contacts and standard 11.9mm bushing. The switch features a 4A 30VDC rating and solder lug terminals making it suitable for a wide range of low voltage applications.
On-(On) momentary action SPDT contacts 11.9mm bushing 7mm bushing height Solder lug terminals Rating: 4A 30VDC, 6A 125VAC, 3A 250VAC Panel cut-out: 12.5mm Dimensions: 35.2 x 10 x 13.2mm (height x width x depth)
Specification
| Actuation | Momentary |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 30,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.5mm |
| Pitch | 4.0mm |
| Product series | 8000 |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
