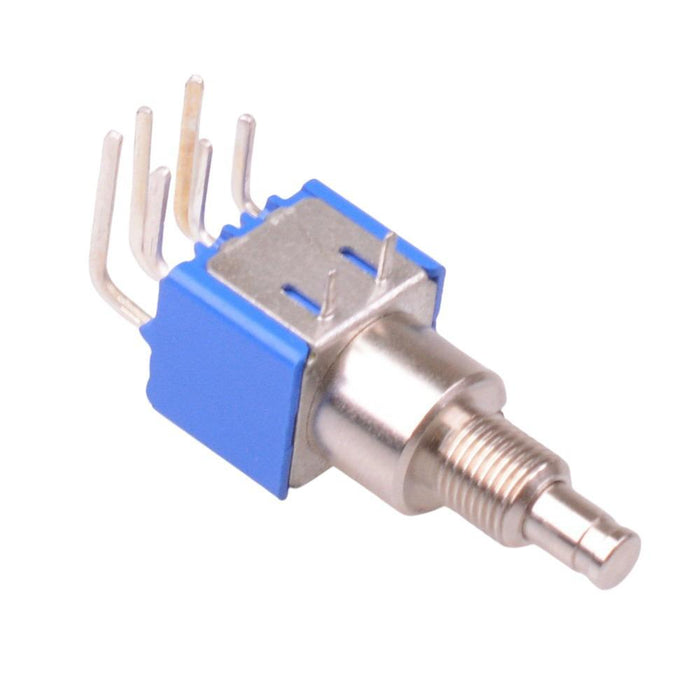

8446WA Latching On-On Right Angle PCB Push Button Switch DPDT
by APEM
SKU 489896
MPN: 8446WA
Availability:
Only 1 left!
Original price
£7.63
-
Original price
£7.63
Original price
£7.63
Inc VAT
£7.63
-
£7.63
Current price
£7.63
Inc VAT
The 8446WA is a On-On latching push button switch by APEM, featuring SPDT contacts and 6.35mm bushing. The switch features 4A 30VDC rating and right angle PCB terminals.
SPDT contacts On-On latching function Right angle PCB terminals Silver contacts 6.35mm threaded bushing Rating: 4A 30VDC Terminal pitch: 4.0mm
Specification
| Actuation | Latching |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 30,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Pitch | 4.0mm |
| Product series | 8000 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
