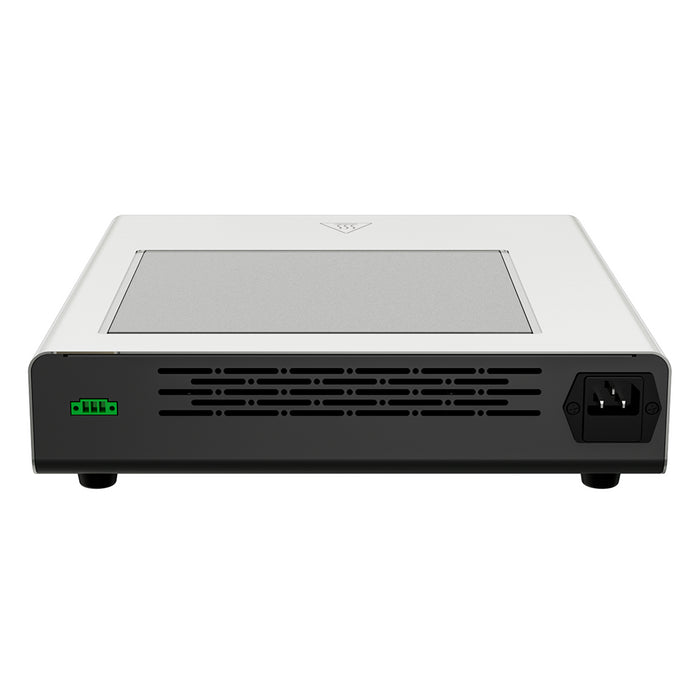

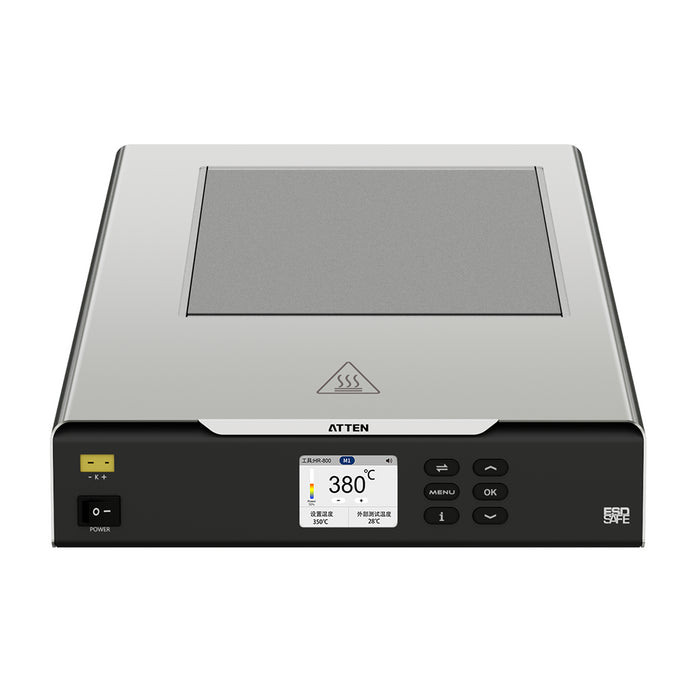

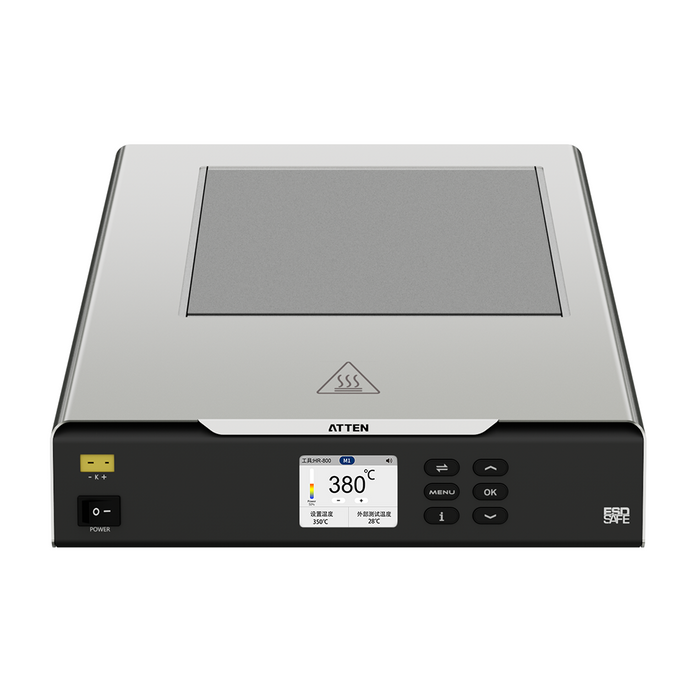

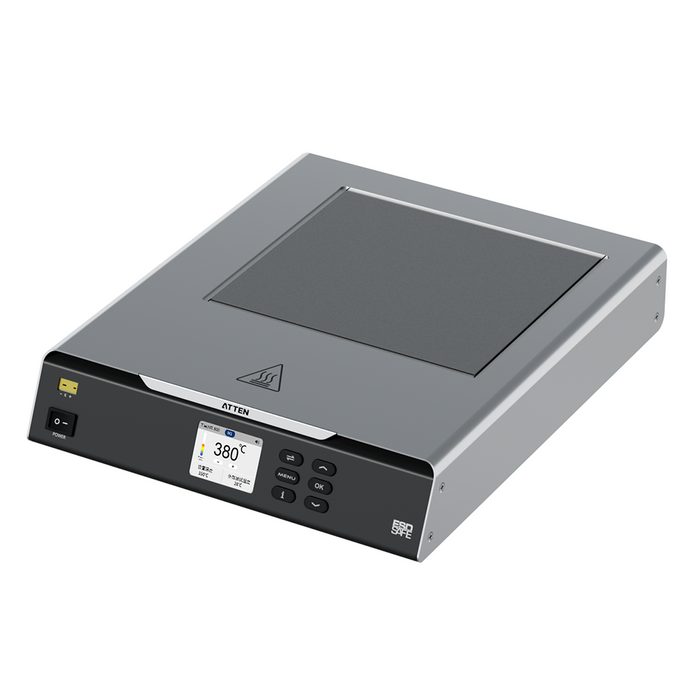

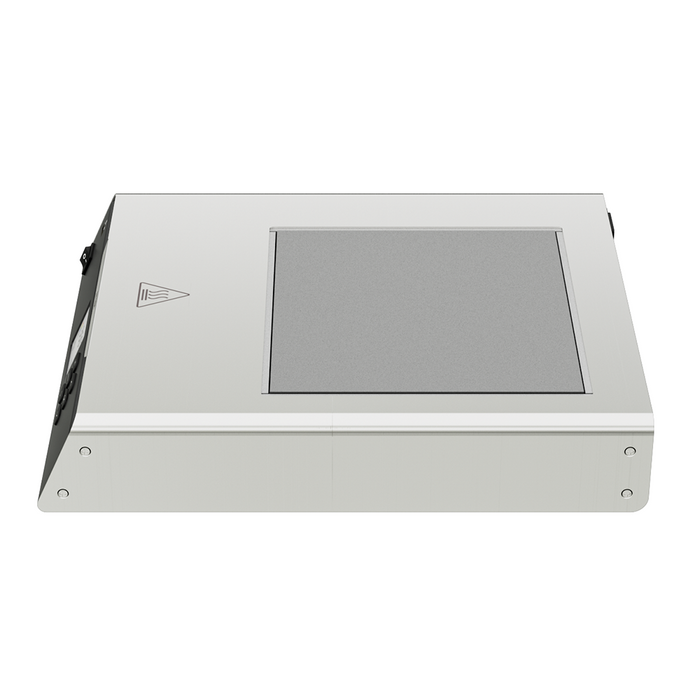

800W 50-350℃ Large Digital Preheating Platform ST-7800 ATTEN

The ST-7800 is a professional large preheating platform featuring 800W power and temperature range from 50 to 350℃. The platform features an attractive anti-static design with a metal shell providing a 20x18cm heating area. The platform features an external k-type sensor interface for accurate temperature measurements and built-in RS-485 communication allowing real-time monitoring, data storage, analysis and full control via the computer. The platforms features numerous user friendly features including parameter shortcuts, temperature lock and temperature compensation. The precise and stable temperature operation makes it suitable for preheating printed circuit boards and other applications requiring uniform heating.

Power: 800W

Operating votlage: 220-240VAC

Temperature range: 50-350℃

Heating are: 200x180mm

Anti-static design

Colour TFT screen

Three parameter presets

Temperature locking and compensation function

Switchable temperature units

Sensor closed loop PID control

Equipped with external k-type sensor interface

RS-485 communication for full control and monitor via the computer

Dimensions: 355 x 293 x 73mm (length x width x height)

Includes UK plug

Comes with a 2 year warranty

What's included?

ST-7500 unit

K-type thermocouple test sensor

Grounding wire

Power cable
