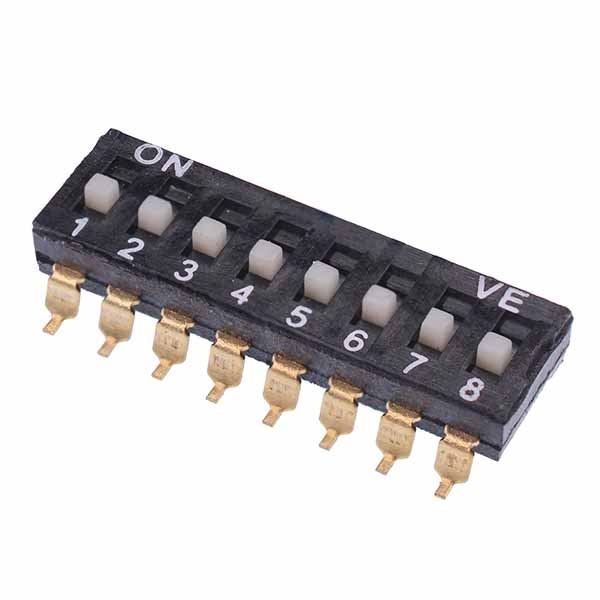

8 Way SMD DIL Switch 2.54mm
SKU 483053
MPN: 483053
Availability:
442 in stock
Original price
£0.70
-
Original price
£0.70
Original price
£0.70
£0.70
£0.70
-
£0.70
Current price
£0.70
8 way low profile DIL switch featuring SPST contacts and a 2.54mm pitch, suitable for mounting to a PCB.
8 ways 2.54mm terminal pitch Switching rating: 25mA 24VDC Steady state rating: 100mA 50VDC SPST contacts Height above PCB: 3.8mm Body width: 6.8mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 1,000 Cycles |
| Material | PPS |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 8 |
| Operating Force | 8N |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
