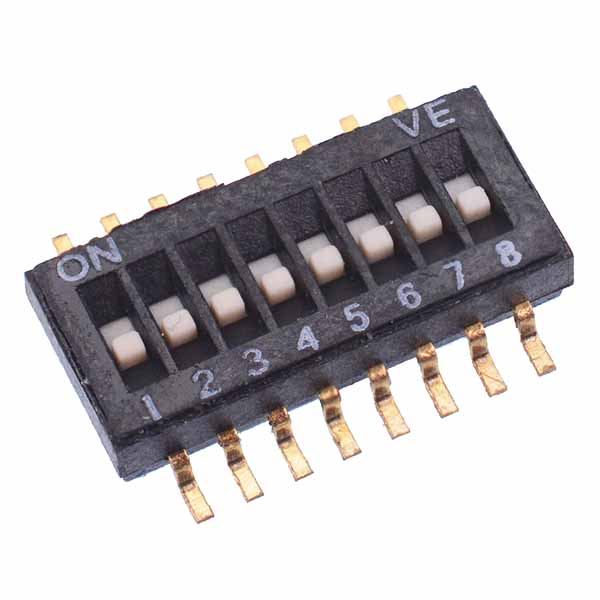

8 Way Half Pitch SMD DIL Switch 1.27mm
SKU 483049
MPN: 483049
Availability:
386 in stock
Original price
£0.90
-
Original price
£0.90
Original price
£0.90
Inc VAT
£0.90
-
£0.90
Current price
£0.90
Inc VAT
8 way micro miniature DIL switch featuring SPST contacts and a 1.27mm pitch, suitable for mounting to a PCB.
2 ways 1.27mm terminal pitch Switching rating: 25mA 24VDC Steady state rating: 100mA 50VDC SPST contacts Height above PCB: 2.3mm Body width: 5.4mm
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact rating | 25mA 24VDC |
| Current rating | 25mA |
| Electrical life | 1,000 Cycles |
| Material | PPS |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 8 |
| Operating force | 9.8N |
| Operating temperature | -40°C to +85°C |
| Pitch | 1.27mm |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
