8-Way 5.08mm Right Angle Pluggable Terminal Block Green 15A 300V

SKU 488452

MPN: AKZ950/08-5.08-GREEN

Availability:
36 in stock
Original price £3.10 - Original price £3.10
Original price
£3.10 Inc VAT
£3.10 - £3.10
Current price £3.10 Inc VAT

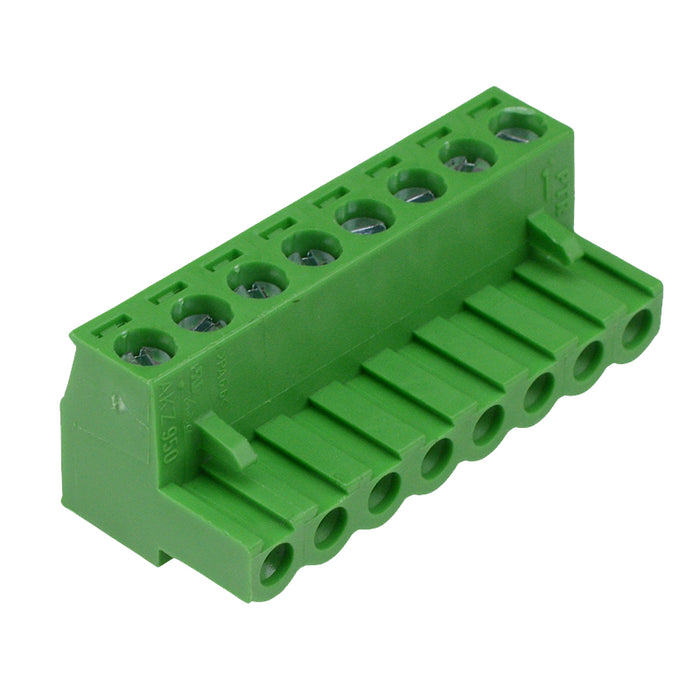

8 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5.08mm pitch and parallel wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.

  • 8 pole
  • 5.08mm pitch
  • Right angle
  • Material: PA66
  • Rating: 15A 300V
  • Wire size: 22-12AWG
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Brass
    Current rating 15A
    Housing material PA66
    Mounting type Cable Mount
    Number of ways 8
    Operating temperature -40°C to +105°C
    Pitch 5.08mm
    Termination method Screw
    Voltage rating 300VAC
    Wire range 22-12AWG
