8.2V Zener Diode 0.5W

SKU 402020

MPN: 402020

Availability:
2871 in stock
Original price £0.07 - Original price £0.07
Original price
£0.07
£0.07 - £0.07
Current price £0.07

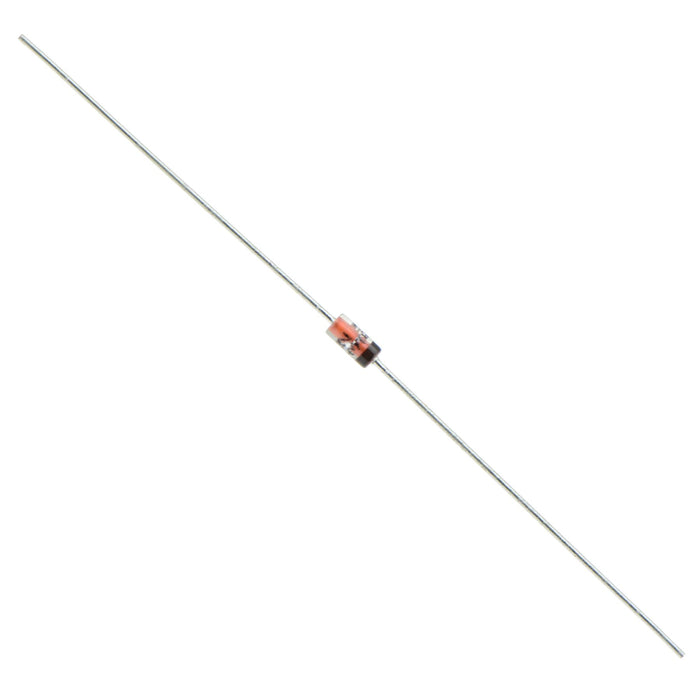

Zener diode with 500mW power dissipation housed in a DO-35 package.

  • Glass encapsulated
  • 5% voltage tolerance
  • Power dissipation: 500mW
  • 0.5mm diameter leads
  • Supplied on tape packaging
  • Specification
    Back Order Lead Time 40 Days
    Body Dimensions 3.9 x 1.9mm (Length x Diameter)
    Lead Dimensions 27.5 x 0.52mm (Length x Diameter)
    Maximum Reverse Leakage 3μA
    Maximum Zener Impedance
    MOQ 10
    Operating Temperature 175°C Maximum
    Package DO-35
    Packaging Tape
    Power Dissipation 500mW
    Test Current 20mA
    Zener Voltage 8.2V
    Zener Voltage Tolerance 5%
