7949WCD Black On-Off-On Right Angle PCB Rocker Switch DPDT 0.4A 20V

by APEM
SKU 487322

MPN: 7949WCD+U622

Availability:
248 in stock
Original price £4.11 - Original price £4.11
Original price
£4.11 Inc VAT
£4.11 - £4.11
Current price £4.11 Inc VAT

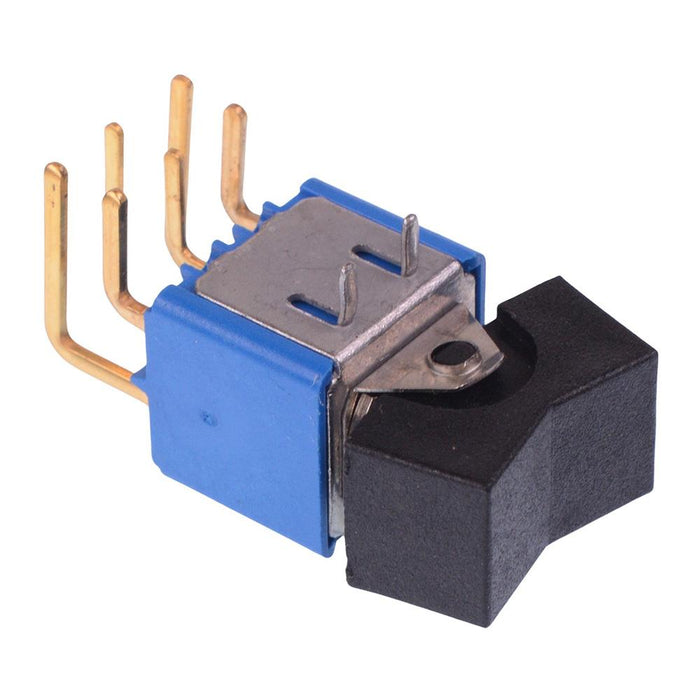

The 7949WCD is a black rocker switch featuring DPDT contacts, suitable for horizontal PCB mounting applications.

  • Black medium rocker U622
  • DPDT contacts
  • On-Off-On momentary operation
  • Right angle PCB terminals
  • Gold plated brass contacts
  • Rating: 0.4A 20VAC/DC
  • 4.7mm terminal pitch
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Black
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Pitch 4.7mm
    Switch operation On-Off-On
    Terminal type PCB
    Voltage rating 20VAC/DC
