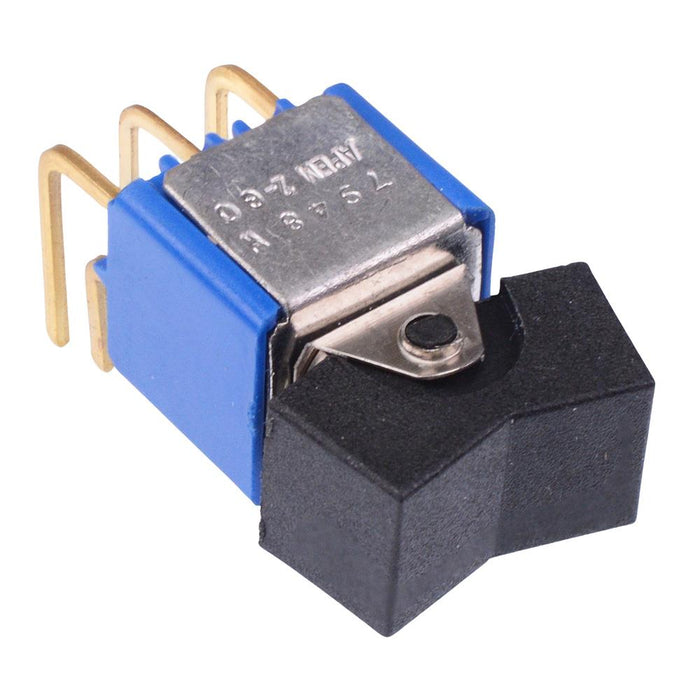

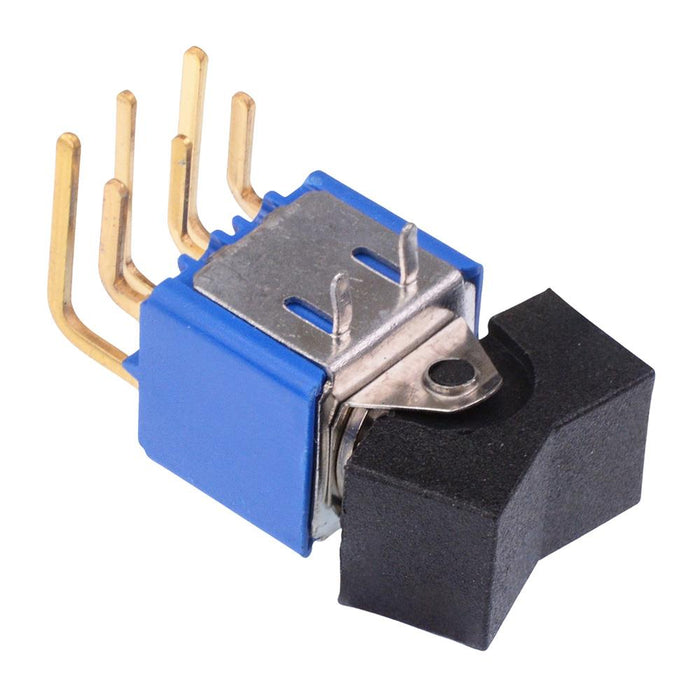

7948WCD Black On-Off-(On) Momentary Right Angle PCB Rocker Switch DPDT 0.4A 20V

by APEM
SKU 487804

MPN: 7948WCD+U622

Availability:
50 in stock
Original price £3.81 - Original price £3.81
Original price
£3.81 Inc VAT
£3.81 - £3.81
Current price £3.81 Inc VAT
The 7948WCD is a black rocker switch featuring DPDT contacts, suitable for horizontal PCB mounting applications.

  • Black medium rocker U622
  • DPDT contacts
  • On-Off-(On) momentary operation
  • Right angle PCB terminals
  • Gold plated brass contacts
  • Rating: 0.4A 20VAC/DC
  • 4.7mm terminal pitch
  • Specification
    Actuation Latching / Momentary
    Back order lead time 10 Days
    Colour Black
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Pitch 4.7mm
    Switch operation On-Off-(On)
    Terminal type PCB
    Voltage rating 20VAC/DC
