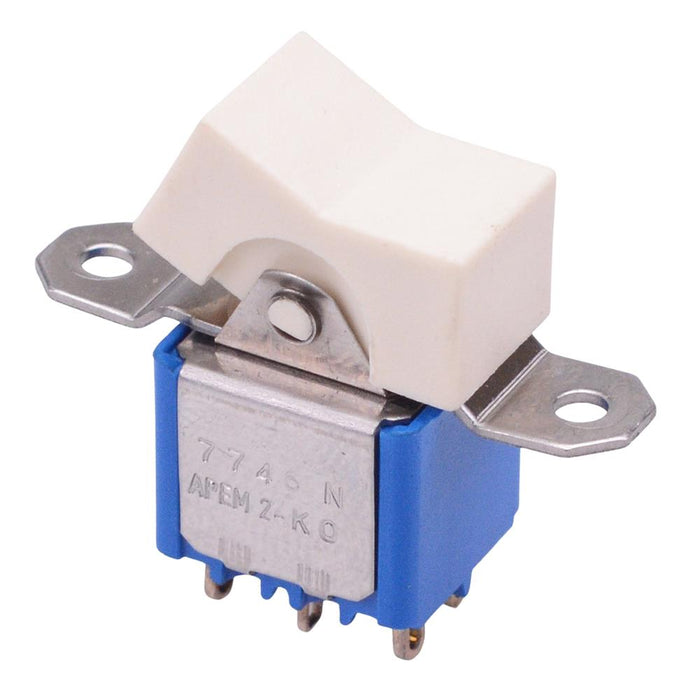

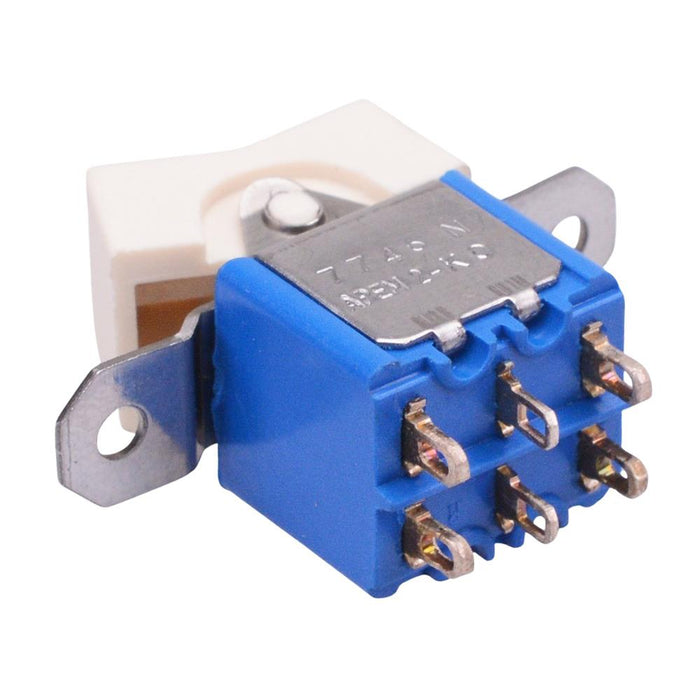

7746NA Ivory On-On Panel Mount Rocker Switch DPDT 4A 30VDC
by APEM
SKU 492916
MPN: 7746NA+U627
Availability:
60 in stock
Save 7%
Original price
£3.13
Original price
£3.13
-
Original price
£3.13
Original price
£3.13
Current price
£2.90
£2.90
-
£2.90
Current price
£2.90
The 7746NA is a rocker switch featuring DPDT contacts and ivory actuator, manufactured by APEM and suitable for panel mounting applications.
Medium ivory rocker U627 DPDT contacts On-On operation Solder lug terminals Mounting plate Silver contacts Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Colour | Black |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
