770-103 WAGO 3 Pole WINSTA MIDI Female Socket Strain Relief 25A

by Wago
SKU 489412

MPN: 770-103

Availability:
37 in stock
Original price £4.58 - Original price £4.58
Original price
£4.58
£4.58 - £4.58
Current price £4.58

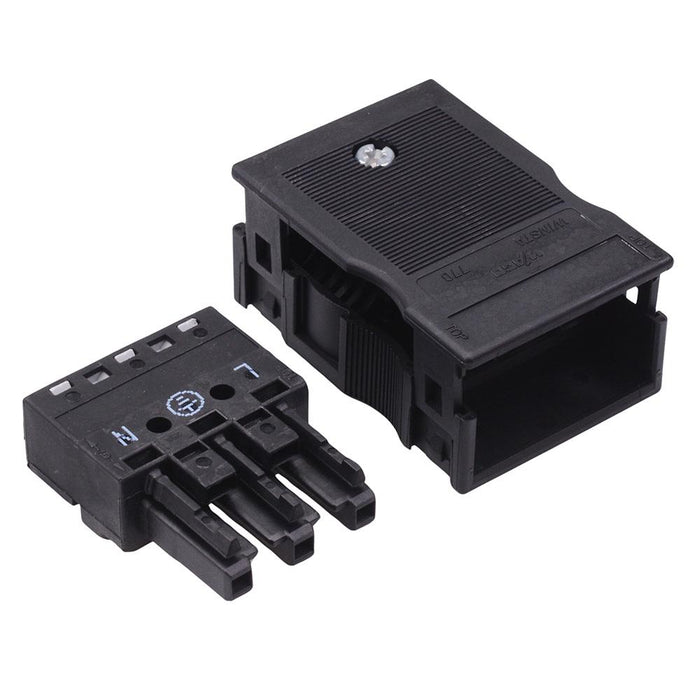

The 770-103 is a 3 pole female socket with strain relief from the WAGO WINSTA series of connectors. The socket features A coding and is compatible with solid and stranded conductors up to 4mm². The connectors utilize Push-in CAGE CLAMP® technology providing a secure connection to the wire and fast installation. The current rating is 25A making it suitable for a wide range of applications including lighting, control cabinets and PCBs.

  • 3 poles
  • Push-in CAGE CLAMP® technology
  • Coding: A
  • Current rating: 25A
  • Nominal voltage: 250V
  • Rated surge voltage: 4kV
  • Wire size: 0.5-4mm² 20-12AWG
  • Wire strip length: 9mm
  • Pin spacing: 10mm
  • Width: 34.6mm
  • Height: 15mm
  • Depth: 76mm
  • Specification
    Back Order Lead Time 5 Days
    Contact Material Tin Plated Copper
    Contact Pitch 10mm
    Current Rating 25A
    Gender Female
    Housing Material PA66
    Mounting Type Cable
    Number of Ways 3
    Operating Temperature -35°C to +85°C
    Termination Method Push-In
    Voltage Rating 250V
    Wire Range 0.5mm² to 4mm²
