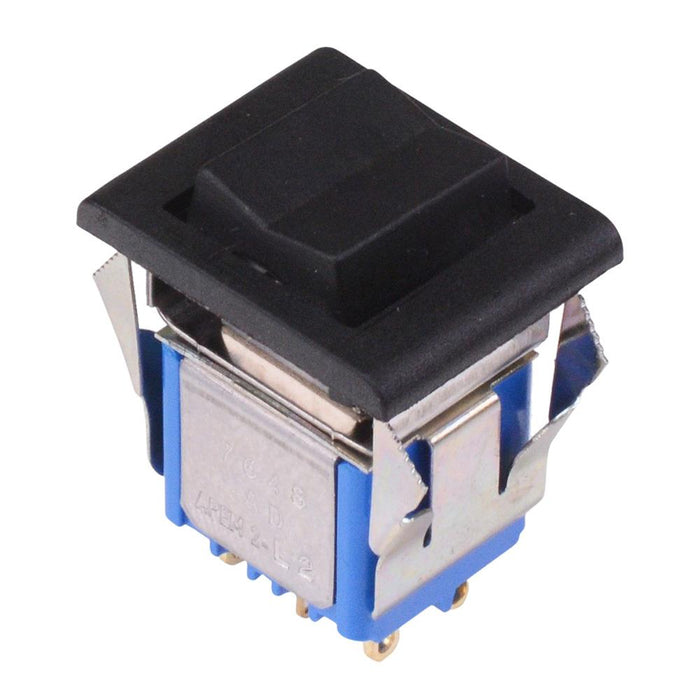

7648AD Black On-Off-(On) Momentary Snap-In Rocker Switch DPDT 4A 30VDC

SKU 487773

MPN: 7648AD+U1202+U732

25 in stock
Original price £8.58 - Original price £8.58
Original price
£8.58 Inc VAT
£8.58 - £8.58
Current price £8.58 Inc VAT
The 7648AD is a black snap-in rocker switch featuring DPDT contacts, suitable for panel mounting applications.

  • Black rocker actuator U732
  • DPDT contacts
  • On-Off-(On) momentary operation
  • Solder lug terminals
  • Gold plated silver contacts
  • Panel thickness: 1 to 2.5mm
  • Panel cut-out: 15 x 12.5mm
  • Rating: 4A 30VDC
  • 4.7mm terminal pitch
  • Specification
    Actuation Latching / Momentary
    Back order lead time 10 Days
    Colour Black
    Contact configuration DPDT
    Contact material Gold Plated Silver
    Contact rating 4A 30VDC
    Current rating 4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 15 x 12.5mm
    Panel thickness 1-2.5mm
    Pitch 4.7mm
    Switch operation On-Off-(On)
    Terminal type Solder
    Voltage rating 30VDC
