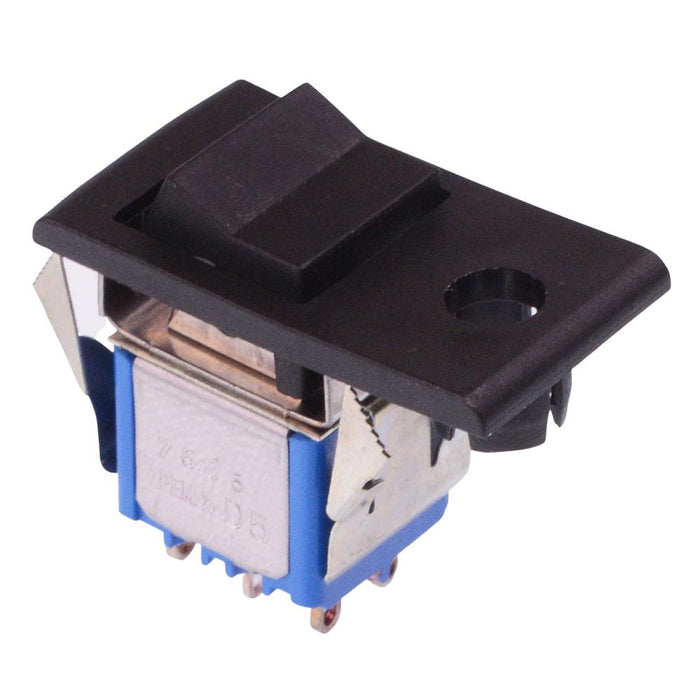

7646AB APEM Black On-On Snap-In Rocker Switch DPDT 4A 30VDC
by APEM
SKU 487889
MPN: 7646AB+U1212+
Availability:
28 in stock
Original price
£5.99
-
Original price
£5.99
Original price
£5.99
£5.99
£5.99
-
£5.99
Current price
£5.99
The 7646AB is a black snap-in rocker switch featuring a black bezel incorporating a LED cut-out, suitable for panel mounting applications.
Black rocker actuator DPDT contacts On-On operation Compatible with 5mm LED Solder lug terminals Silver contacts Epoxy sealed terminals Panel thickness: 1 to 2.5mm Panel cut-out: 15 x 12.5mm Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Colour | Black |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 15 x 12.5mm |
| Panel Thickness | 1-2.5mm |
| Pitch | 4.7mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
