7646A Red On-On Snap-In Rocker Switch DPDT 4A 30VDC APEM

by APEM
SKU 489895

MPN: 7646A+U736+U1202

Availability:
94 in stock
Original price £8.42 - Original price £8.42
Original price
£8.42
£8.42 - £8.42
Current price £8.42

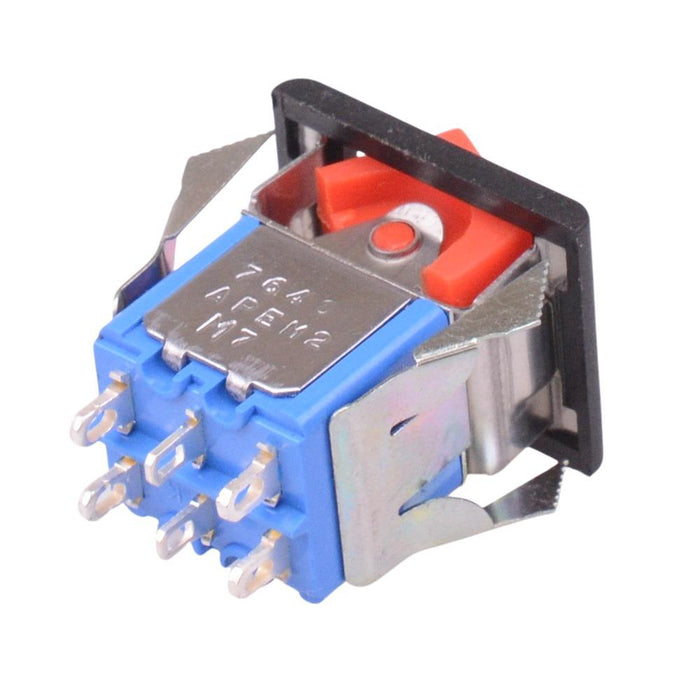

The 7646A is a red snap-in rocker switch manufactured by APEM, featuring momentary DPDT contacts, suitable for panel mounting applications.

  • Red rocker U736
  • DPDT contacts
  • On-On operation
  • Solder lug terminals
  • Silver contacts
  • Panel thickness: 1 to 2.5mm
  • Panel cut-out: 15 x 12.5mm
  • Rating: 4A 30VDC
  • 4.7mm terminal pitch
  • Specification
    Actuation Latching
    Colour Red
    Contact Configuration DPDT
    Contact Material Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 15 x 12.5mm
    Panel Thickness 1-2.5mm
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 30VDC
