7638AD Red Paddle On-Off-(On) Momentary Snap-In Rocker Switch SPDT 4A 30VDC APEM
by APEM
SKU 489894
MPN: 7638AD+U1202+U706
Availability:
100 in stock
Original price
£5.89
-
Original price
£5.89
Original price
£5.89
Inc VAT
£5.89
-
£5.89
Current price
£5.89
Inc VAT

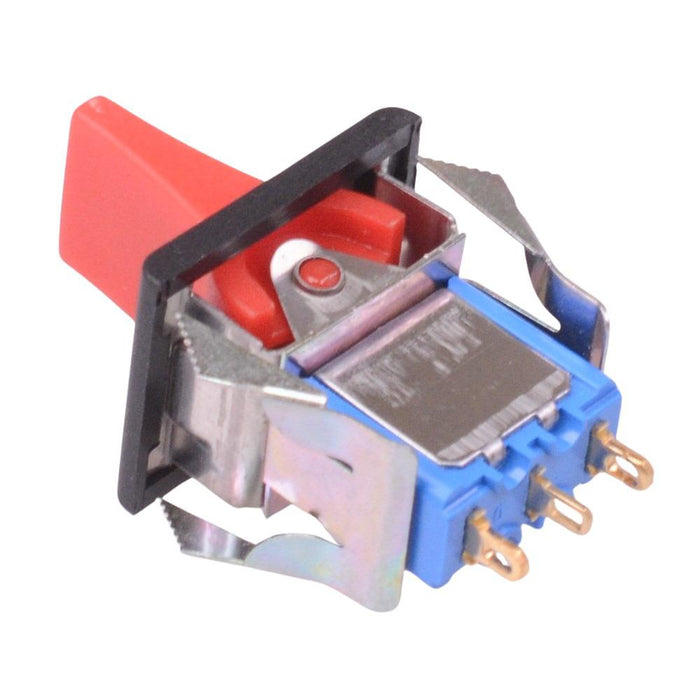

The 7638AD is a red paddle snap-in rocker switch manufactured by APEM, featuring momentary SPDT contacts, suitable for panel mounting applications.
Red broad paddle U706 SPDT contacts (On)-Off-(On) momentary operation Solder lug terminals Gold plated silver contacts Panel thickness: 1 to 2.5mm Panel cut-out: 15 x 12.5mm Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching / Momentary |
| Colour | Red |
| Contact configuration | SPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 15 x 12.5mm |
| Panel thickness | 1-2.5mm |
| Switch operation | On-Off-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
