7636ADUL+U736+U1212 APEM On-On Red Rocker Switch Snap-In SPDT
by APEM
SKU 489892
MPN: 7636ADUL+U736+U1212
Availability:
100 in stock
Original price
£7.15
-
Original price
£7.15
Original price
£7.15
Inc VAT
£7.15
-
£7.15
Current price
£7.15
Inc VAT

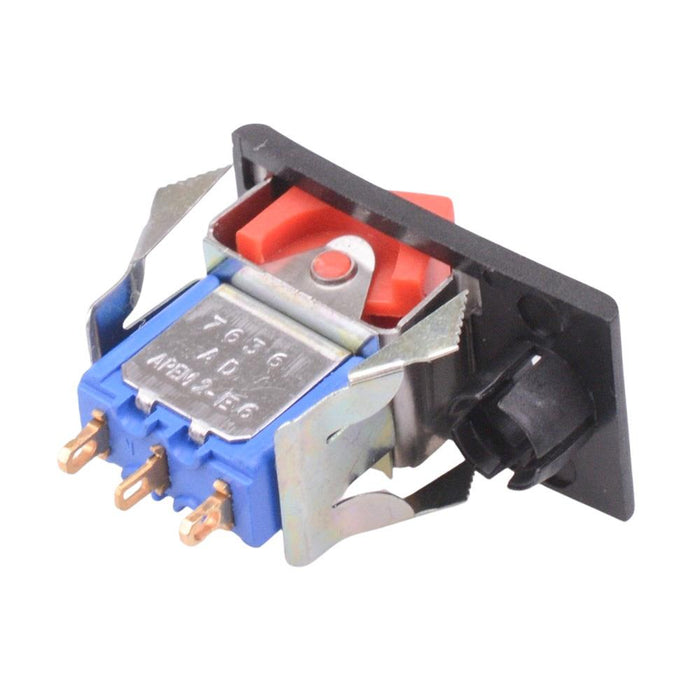

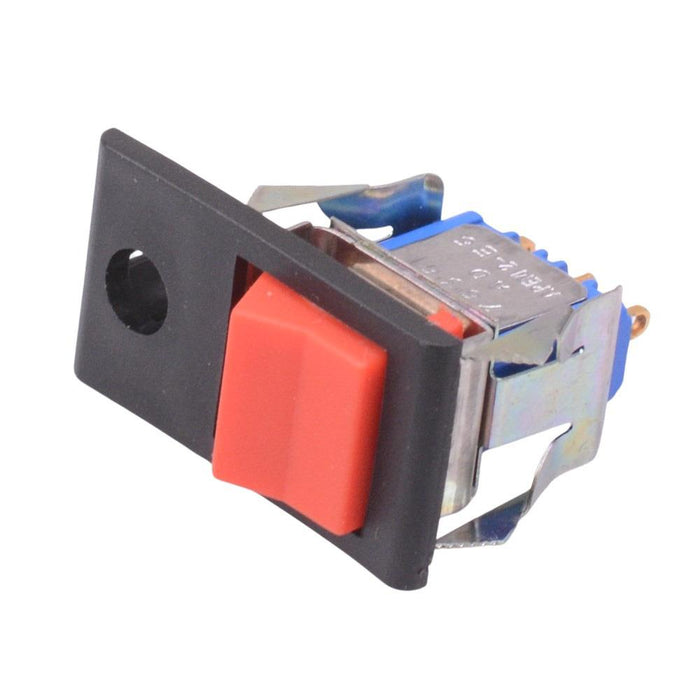

The 7636ADUL is a red snap-in rocker switch manufactured by APEM featuring atching SPDT contacts, suitable for panel mounting applications.
Red rocker paddle U736 SPDT contacts On-On operation Solder lug terminals Gold plated silver contacts Panel thickness: 1 to 2.5mm Panel cut-out: 15 x 12.5mm Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching |
| Colour | Red |
| Contact configuration | SPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 15 x 12.5mm |
| Panel thickness | 1-2.5mm |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
