7236AB Red Paddle On-On PCB Rocker Switch SPDT 4A 30VDC

by APEM
SKU 488212

MPN: 7236AB+U1206+

Availability:
17 in stock
Original price £3.76 - Original price £3.76
Original price
£3.76 Inc VAT
£3.76 - £3.76
Current price £3.76 Inc VAT

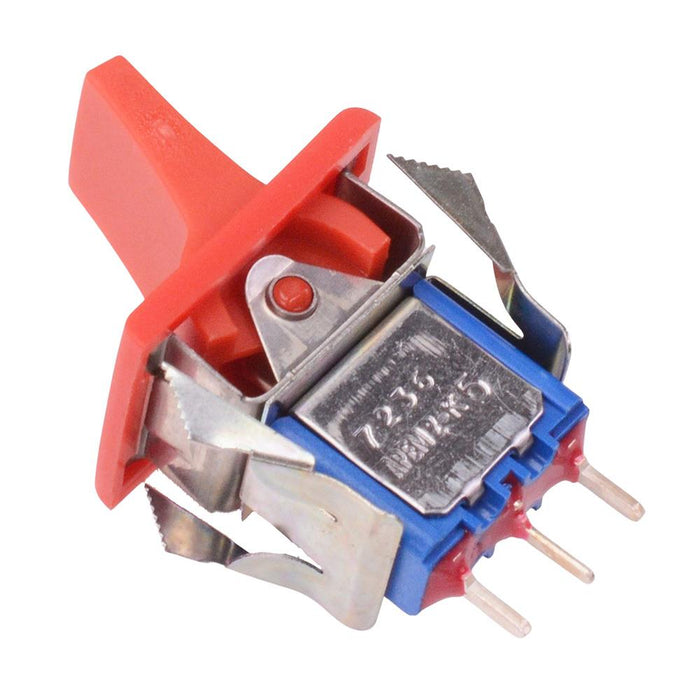

The 7236AB is a red paddle PCB rocker switch featuring SPDT contacts, suitable for PCB mounting applications.

  • Red broad paddle U706
  • SPDT contacts
  • On-On operation
  • PCB terminals
  • Silver contacts
  • Epoxy sealed terminals
  • Panel thickness: 1 to 2.5mm
  • Panel cut-out: 15 x 12.5mm
  • Rating: 4A 30VDC
  • 4.7mm terminal pitch
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Red
    Contact configuration SPDT
    Contact material Silver
    Contact rating 4A 30VDC
    Current rating 4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Pitch 4.7mm
    Switch operation On-On
    Terminal type PCB
    Voltage rating 30VDC
