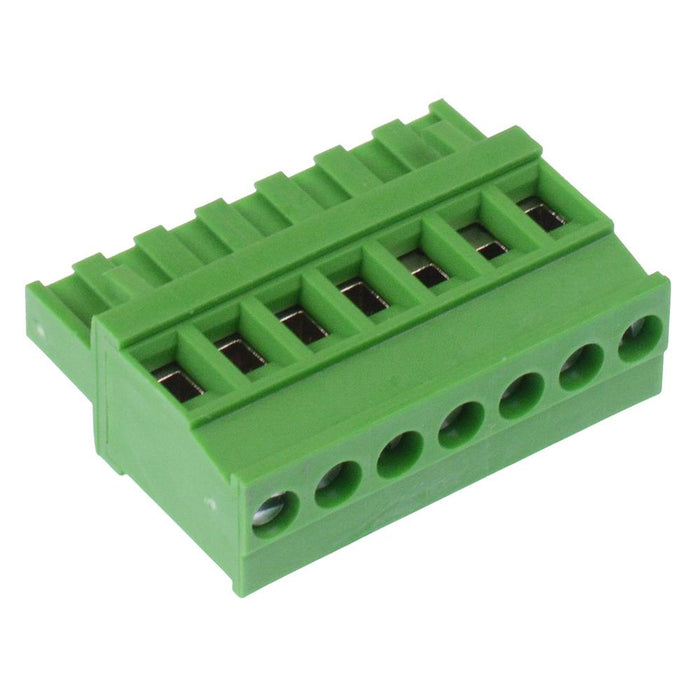

7-Way 5.08mm Vertical Pluggable Terminal Block Green 15A 300V

SKU 487388

MPN: AKZ1100/07-5,08-GREEN

Availability:
700 in stock
Original price £1.39 - Original price £1.39
Original price
£1.39 Inc VAT
£1.39 - £1.39
Current price £1.39 Inc VAT
7 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5.08mm pitch and vertical wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.

  • 7 pole
  • 5.08mm pitch
  • Vertical wire entry
  • Material: PA66
  • Rating: 15A 300V
  • Wire size: 28-10AWG
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Brass
    Current rating 15A
    Housing material PA66
    Mounting type Cable Mount
    Number of ways 7
    Operating temperature -40°C to +105°C
    Pitch 5.08mm
    Termination method Screw
    Voltage rating 300VAC
    Wire range 28-10AWG
