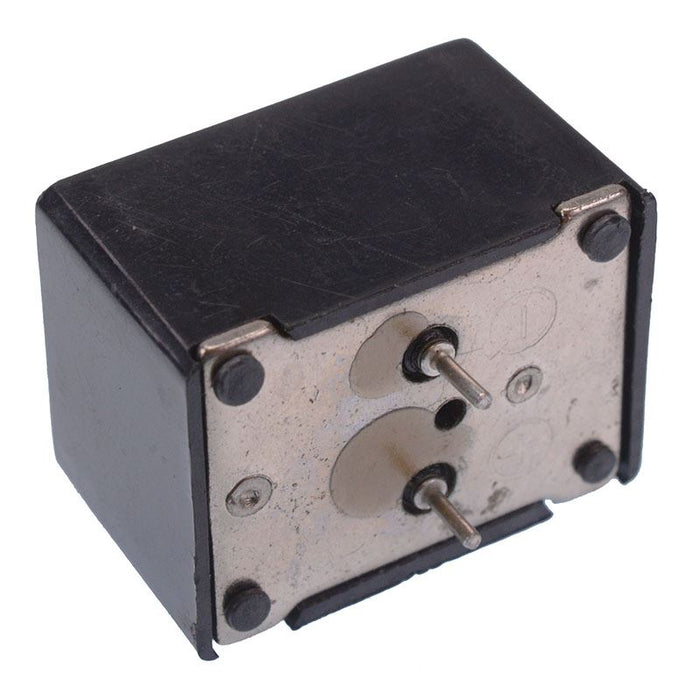

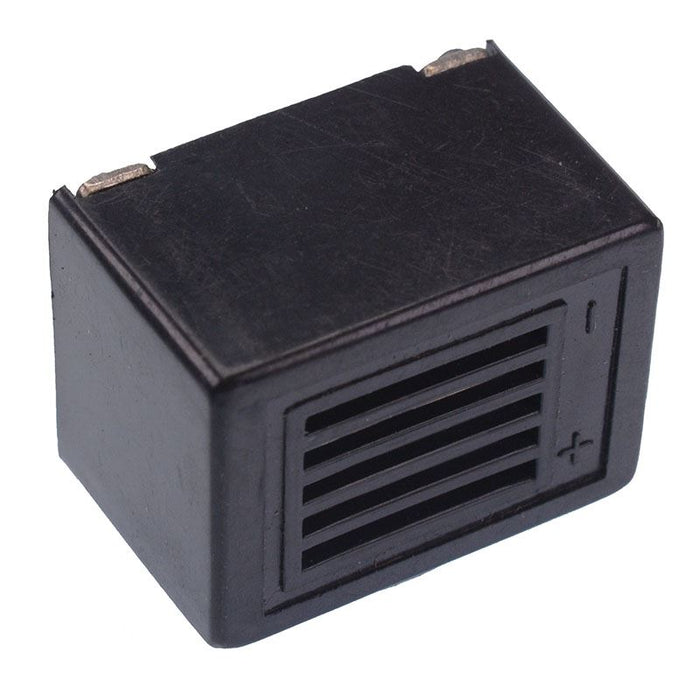

6V PCB Electronic Buzzer

SKU 483454

MPN: 483454

1355 in stock
Original price £0.90 - Original price £0.90
Original price
£0.90 Inc VAT
£0.90 - £0.90
Current price £0.90 Inc VAT
6V PCB mount electronic buzzer featuring a 7.6mm terminal pitch and 4-8V operating voltage.

  • Operating voltage: 4-8V
  • Rated current: 25mA
  • Sound output @ 20cm: 75dB
  • Frequency: 400±100Hz
  • PCB terminal pitch: 7.6mm
  • Dimensions: 23 x 17 x 15mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Frequency 400Hz
    Input voltage 4-8VDC
    Mounting style PCB Mount
    Operating temperature -20°C to +60°C
    Pitch 7.6mm
    Rated current 25mA
    Rated voltage 6VDC
    Sound output 75dB @ 20cm
