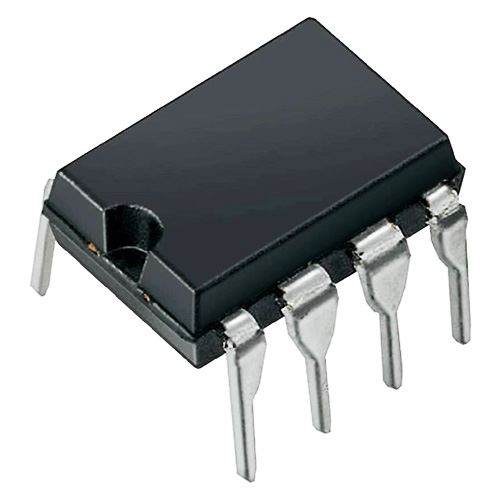

6N139 1-Channel Darlington Output Optocoupler DIP-8

SKU 480040

MPN: 6N139

8 in stock
Original price £0.93 - Original price £0.93
Original price
£0.93 Inc VAT
£0.93 - £0.93
Current price £0.93 Inc VAT
The 6N139 is a high gain series coupler using a light emitting diode and an integrated high gain photo detector providing extremely high current transfer ratio between input and output. Separate pins for the photodiode and output stage result in TTL compatible saturation voltage and high speed operation. Where desired the Vcc and Vo terminals may be tied together to achieve conventional photo darlington operation. A base access terminal allows a gain bandwidth adjustment to be made.

  • High current transfer ratio: 300-1600% @ 1.6mA
  • Low input current requirements: 0.5mA
  • High output current: 60mA
  • TTL compatible output
  • 8-pin DIP package
  • Specification
    Back order lead time 5 Days
    Current transfer ratio 300-1600%@1.6mA
    Forward current 20mA
    Isolation voltage 2500V
    Number of channels 1
    Number of pins 8
