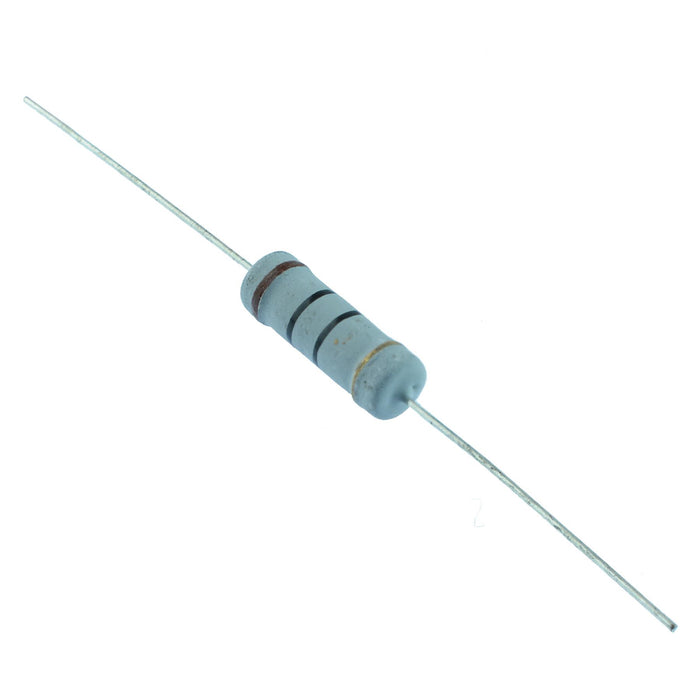

6k8 Metal Oxide 3W Resistor 5%
SKU 347017
MPN:
Availability:
3256 in stock
Original price
£0.10
-
Original price
£0.10
Original price
£0.10
£0.10
-
£0.10
Current price
£0.10
3W metal oxide resistors with a 5% tolerance housed in a non-flammable compact package.
Stable and reliable performance Non-flammable coating Excellent thermal and overload stability Lead dimensions: 28 x 1mm Body dimensions: 17.5 x 6.5mm
Specification
| Back Order Lead Time | 30 Days |
| Body Dimensions | 17.5 x 6.5mm (Length x Diameter) |
| Lead Diameter | 1mm |
| Maximum Operating Voltage | 500V |
| MOQ | 10 |
| mpn | 347017 |
| Operating Temperature | -55°C to +125°C |
| Packaging | Cut Tape |
| Power Rating | 3W |
| Resistance | 6.8KΩ |
| Temperature Coefficient | ±350ppm/°C |
| Termination | Axial |
| Tolerance | ±5% |
