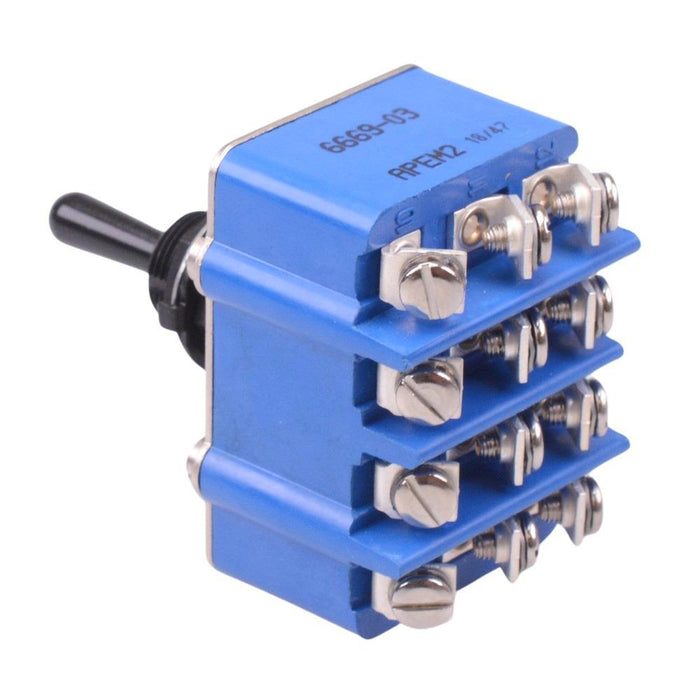

6669-03 APEM Black On-Off-On 12mm Toggle Switch 4PDT 6.5A
by APEM
SKU 489888
MPN: 6669-03
Availability:
99 in stock
Original price
£98.52
-
Original price
£98.52
Original price
£98.52
Inc VAT
£98.52
-
£98.52
Current price
£98.52
Inc VAT
The 6659-03 is a high amperage On-Off-On toggle switch featuring a robust mechanism and 4PDT contacts. The switch features screw terminals and are popular for a wide range of applications including automotive due to there reliability and rugged design.
On-Off-On operation 4PDT contacts Screw terminals Rating: 6.5A 30VDC Panel cut-out: 12.2mm Maximum panel thickness: 5mm
Specification
| Actuation | Latching |
| Contact configuration | 4PDT |
| Contact material | Silver |
| Contact rating | 6.5A 30VDC |
| Current rating | 6.5A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 4 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Panel thickness | 5mm |
| Product series | 6000 |
| Switch operation | On-Off-On |
| Terminal type | Screw |
| Voltage rating | 30VDC |
