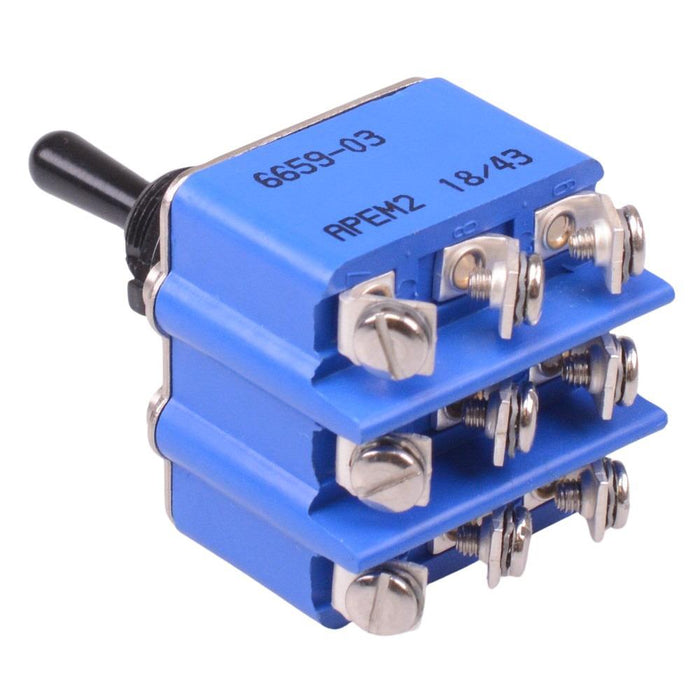

6659-03 APEM Black On-Off-On 12mm Toggle Switch 3PDT 6.5A

by APEM
SKU 489887

MPN: 6659-03

Availability:
10 in stock
Original price £79.18 - Original price £79.18
Original price
£79.18 Inc VAT
£79.18 - £79.18
Current price £79.18 Inc VAT
The 6659-03 is a high amperage On-Off-On toggle switch featuring a robust mechanism and 3PDT contacts. The switch features screw terminals and are popular for a wide range of applications including automotive due to there reliability and rugged design.

  • On-Off-On operation
  • 3PDT contacts
  • Screw terminals
  • Rating: 6.5A 30VDC
  • Panel cut-out: 12.2mm
  • Maximum panel thickness: 5mm
  • Specification
    Actuation Latching
    Contact configuration 3PDT
    Contact material Silver
    Contact rating 6.5A 30VDC
    Current rating 6.5A
    Electrical life 10,000 Cycles
    Illuminated No
    Moq 1
    Mounting style Panel
    Number of poles 3
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 12.2mm
    Panel thickness 5mm
    Product series 6000
    Switch operation On-Off-On
    Terminal type Screw
    Voltage rating 30VDC
