6655-03K APEM Black On-(On) Momentary 12mm Toggle Switch 3PDT 6.5A
by APEM
SKU 488014
MPN: 6655-03K
Availability:
Only 4 left!
Original price
£31.04
-
Original price
£31.04
Original price
£31.04
£31.04
£31.04
-
£31.04
Current price
£31.04

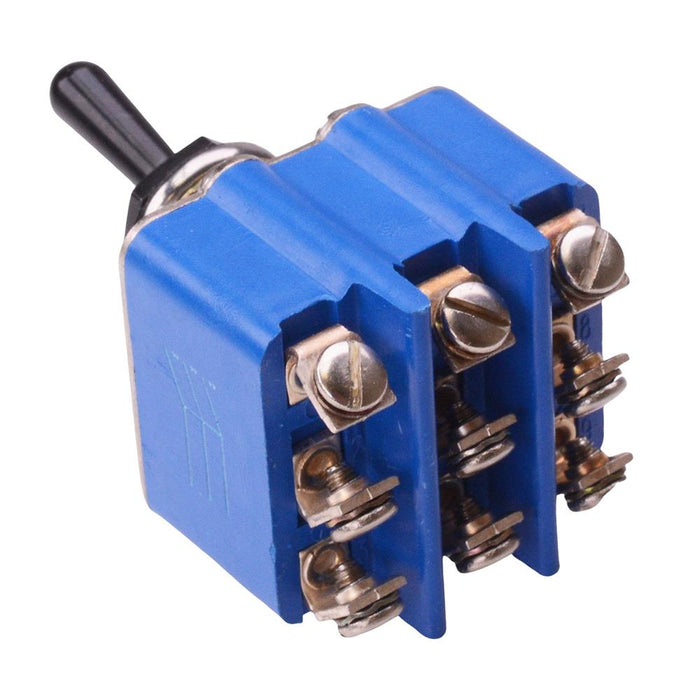

The 6655-03K is a 3PDT momentary toggle switch with 12mm bushing and screw terminals, manufactured by APEM. The switch features a black metal lever and is suited for rugged and demanding applications.
3PDT contacts On-(On) momentary function Screw terminals Front panel sealing Rating: 6.5A 30VDC Panel cut-out: 12.2mm Panel thickness: 5mm max Terminals: silver
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | 3PDT |
| Contact Material | Silver |
| Contact Rating | 6.5A 30VDC |
| Current Rating | 6.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 3 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.2mm |
| Product Series | 6000 |
| Switch Operation | On-(On) |
| Terminal Type | Screw |
| Voltage Rating | 30VDC |
