6649-03DK/3 APEM Black On-Off-On 12mm Toggle Switch DPDT 6.5A
by APEM
SKU 488145
MPN: 6649-03DK/3
Availability:
Only 2 left!
Original price
£43.20
-
Original price
£43.20
Original price
£43.20
Inc VAT
£43.20
-
£43.20
Current price
£43.20
Inc VAT

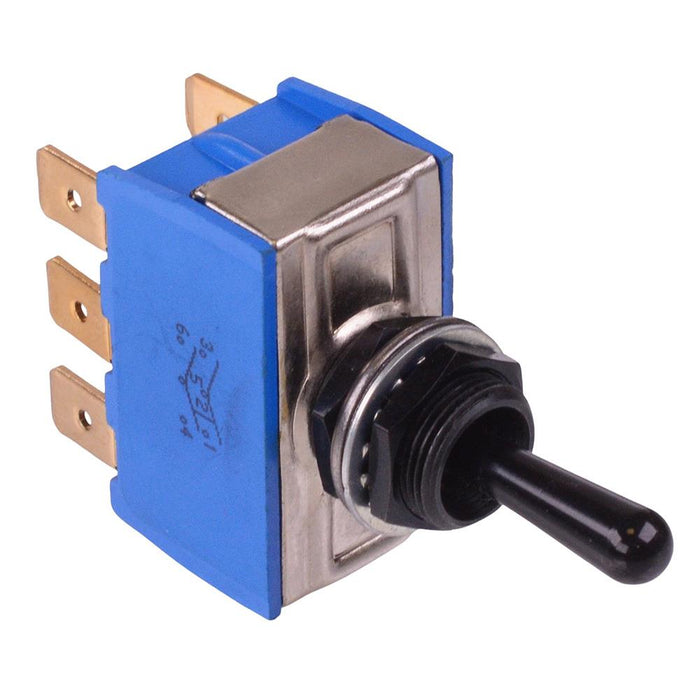

The 6649-03DK/3 is a DPDT toggle switch with 12mm bushing and quick connect terminals, manufactured by APEM. The switch features a black metal lever and is suited for rugged and demanding applications.
DPDT contacts On-Off-On function Quick connect terminals Front panel sealing Rating: 6.5A 30VDC Panel cut-out: 12.2mm Panel thickness: 5mm max Terminals: silver
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 6.5A 30VDC |
| Current rating | 6.5A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Product series | 6000 |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 30VDC |
