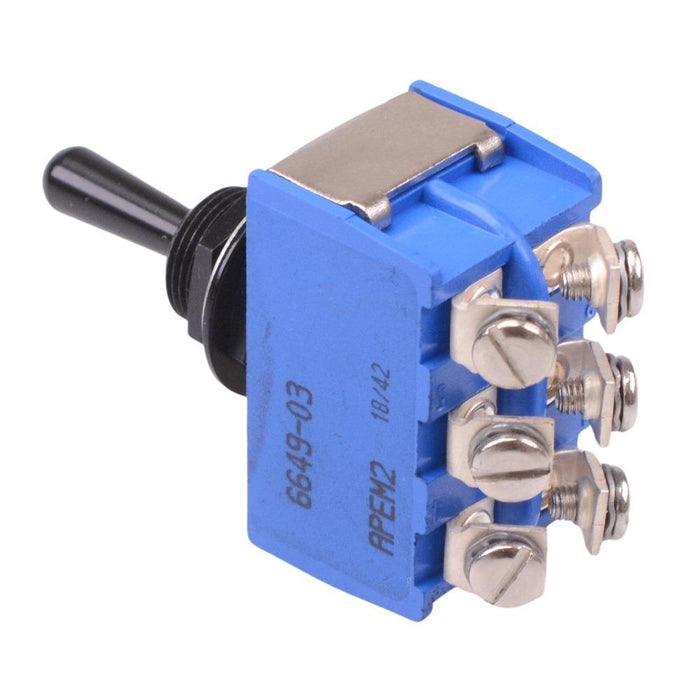

6649-03 APEM Black On-Off-On 12mm Toggle Switch DPDT 6.5A
by APEM
SKU 489886
MPN: 6649-03
Availability:
10 in stock
Original price
£48.29
-
Original price
£48.29
Original price
£48.29
Inc VAT
£48.29
-
£48.29
Current price
£48.29
Inc VAT
The 6649-03 is a high amperage On-Off-On toggle switch featuring a robust mechanism and DPDT contacts. The switch features screw terminals and are popular for a wide range of applications including automotive due to there reliability and rugged design.
On-Off-On operation DPDT contacts Screw terminals Rating: 6.5A 30VDC Panel cut-out: 12.2mm Maximum panel thickness: 5mm
Specification
| Actuation | Latching |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 6.5A 30VDC |
| Current rating | 6.5A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Panel thickness | 5mm |
| Product series | 6000 |
| Switch operation | On-Off-On |
| Terminal type | Screw |
| Voltage rating | 30VDC |
