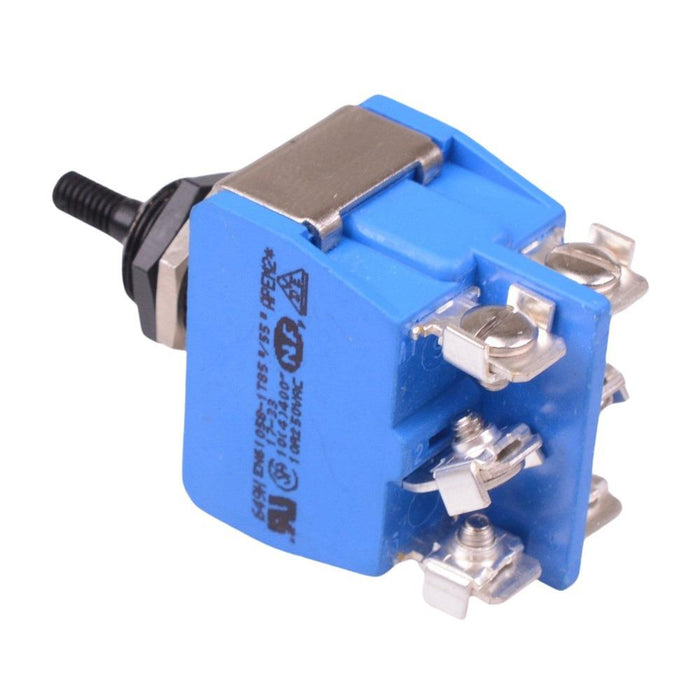

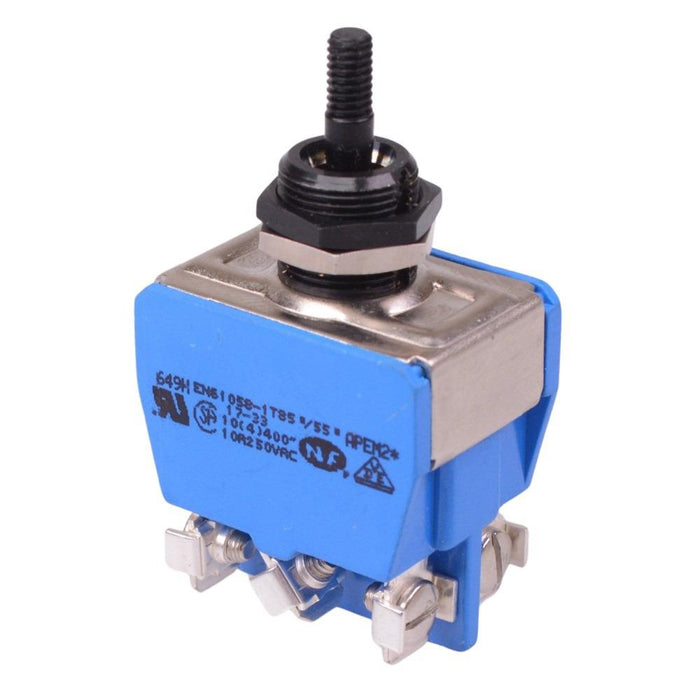

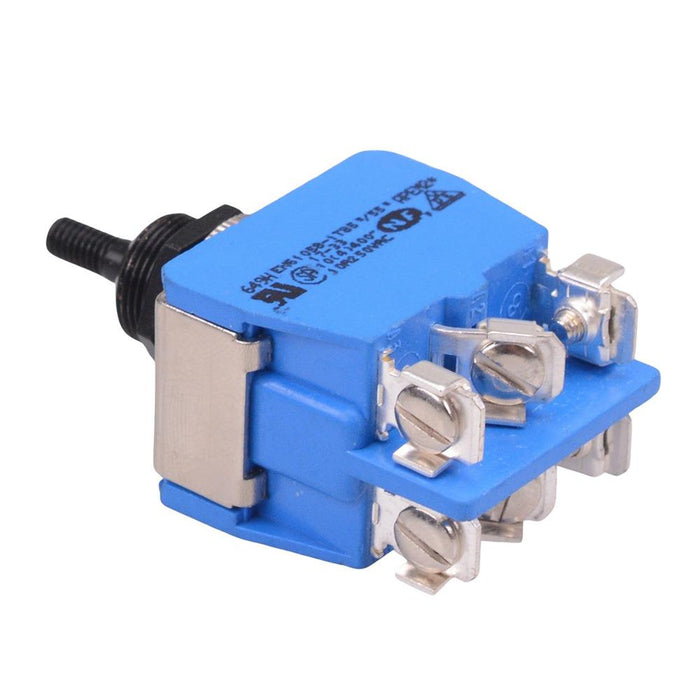

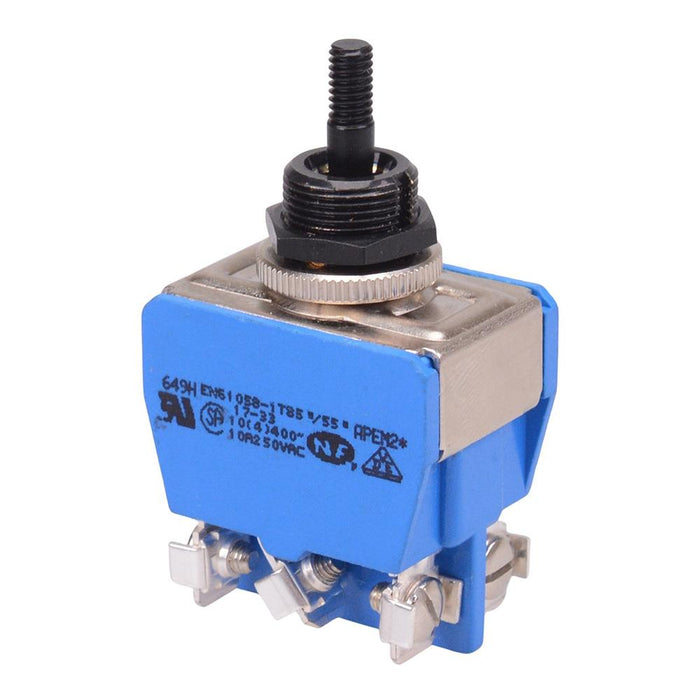

649HGX2330 APEM On-Off-On 12mm Toggle Switch DPDT 15A 250VAC
by APEM
SKU 489884
MPN: 649HGX2330
Availability:
Only 5 left!
Original price
£20.34
-
Original price
£20.34
Original price
£20.34
Inc VAT
£20.34
-
£20.34
Current price
£20.34
Inc VAT
The 649HX2330 is a high amperage On-Off-On toggle switch featuring a threaded lever and DPDT contacts. The switch features screw terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-Off-On operation DPDT contacts Screw terminals Threaded 4x0.75mm lever Black 12x0.75mm bushing Rating: 10A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Contact configuration | DPDT |
| Contact material | Silver/Nickel Alloy |
| Contact rating | 10A 250VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 12.2mm |
| Panel thickness | 4.5mm |
| Product series | 600 |
| Switch operation | On-Off-On |
| Terminal type | Screw |
| Voltage rating | 250VAC |
