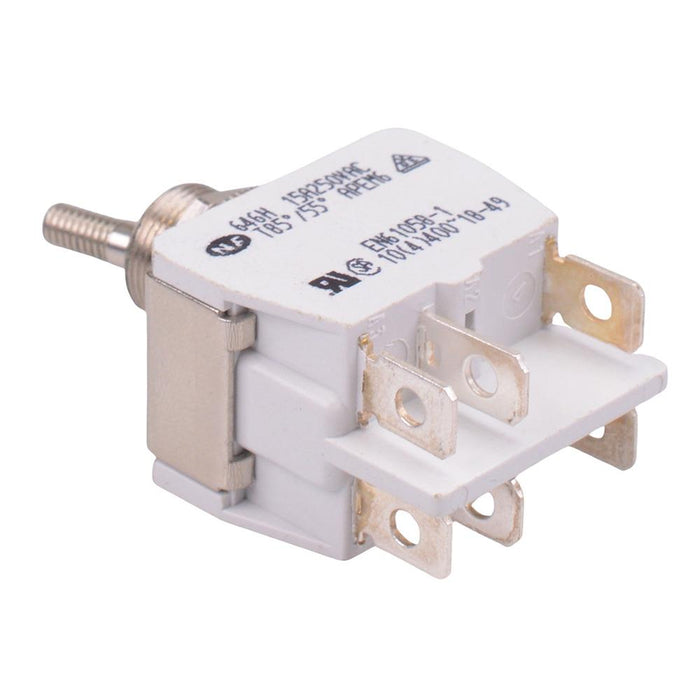

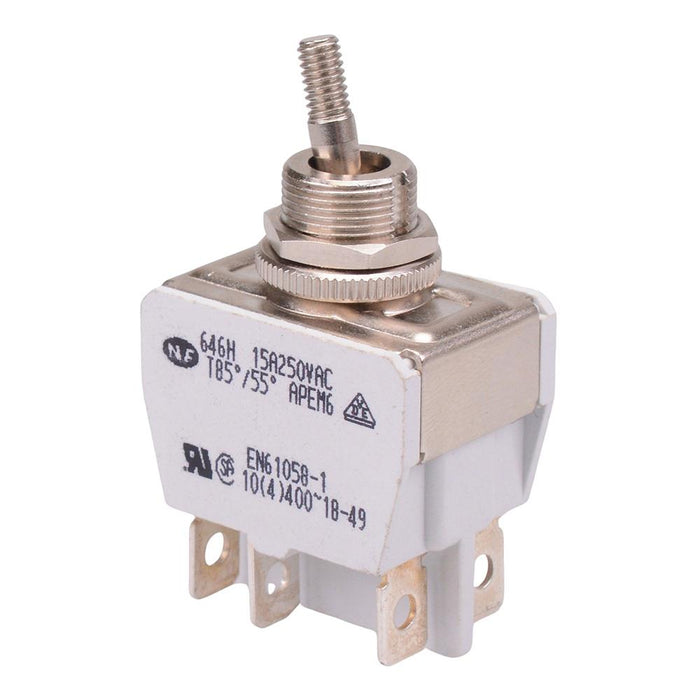

646H/2X2330 APEM On-On 12mm Toggle Switch DPDT 15A 250VAC
by APEM
SKU 489883
MPN: 646H/2X2330
Availability:
45 in stock
Save 31%
Original price
£21.82
Original price
£21.82
-
Original price
£21.82
Original price
£21.82
Current price
£15.06
£15.06
-
£15.06
Current price
£15.06
The 646H/2X2330 is a high amperage On-On toggle switch featuring a threaded lever and DPDT contacts. The switch features quick connect terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-On operation DPDT contacts 6.3mm quick connect terminals Threaded 4x0.75mm lever Black 12x0.75mm bushing Rating: 15A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver/Nickel Alloy |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
