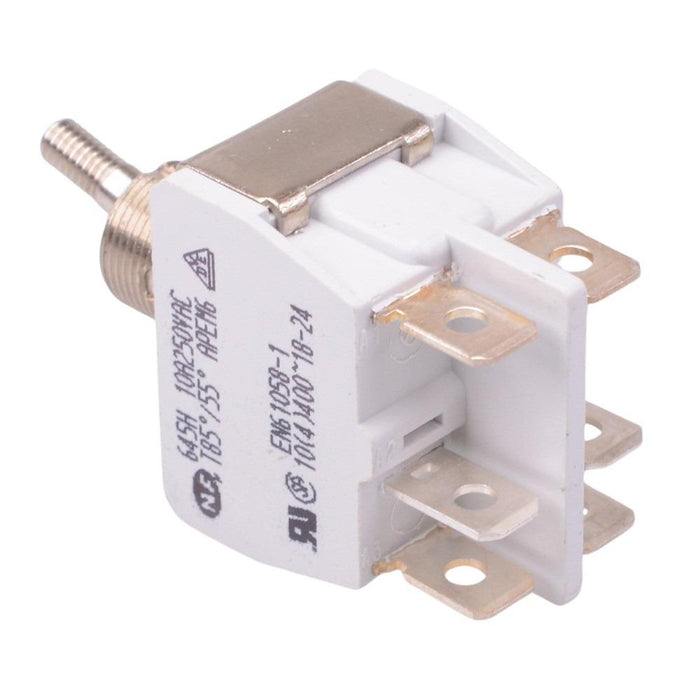

645H/2X2330 APEM On-(On) Momentary 12mm Toggle Switch DPDT 15A 250VAC

by APEM
SKU 489882

MPN: 645H/2X2330

Availability:
9 in stock
Original price £14.05 - Original price £14.05
Original price
£14.05 Inc VAT
£14.05 - £14.05
Current price £14.05 Inc VAT
The 645HX2330 is a high amperage On-(On) momentary toggle switch featuring a threaded lever and DPDT contacts. The switch features screw terminals and are popular for a wide range of applications due to there reliability and rugged design.

  • On-(On) operation
  • DPDT contacts
  • Screw terminals
  • Threaded 4x0.75mm lever
  • Black 12x0.75mm bushing
  • Rating: 10A 250VAC
  • Panel cut-out: 12.2mm
  • Maximum panel thickness: 4.5mm
  • UL, CSA and NF-VDE approved
  • Specification
    Actuation Momentary
    Contact configuration DPDT
    Contact material Silver/Nickel Alloy
    Contact rating 10A 250VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Moq 1
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 12.2mm
    Panel thickness 4.5mm
    Product series 600
    Switch operation On-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
