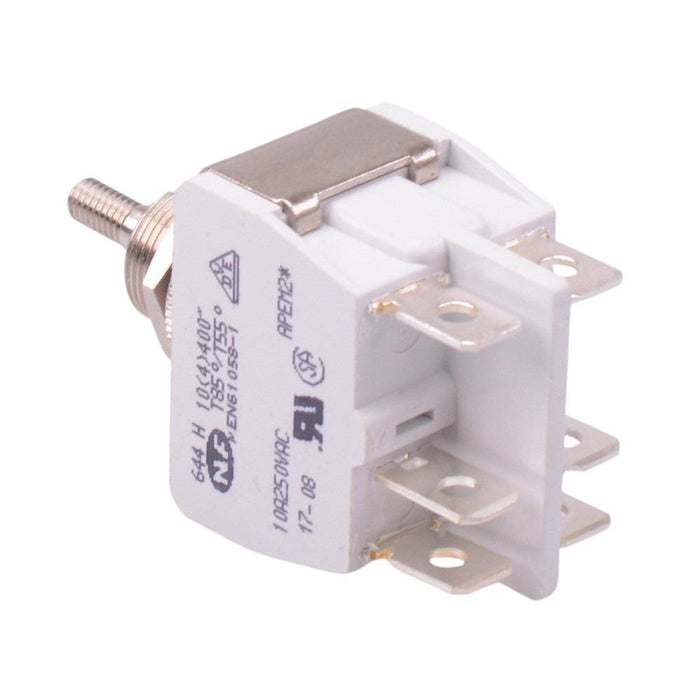

644H/2X2330 APEM On-On-On 12mm Toggle Switch DP3T 15A 250VAC
by APEM
SKU 489881
MPN: 644H/2X2330
Availability:
167 in stock
Original price
£13.72
-
Original price
£13.72
Original price
£13.72
Inc VAT
£13.72
-
£13.72
Current price
£13.72
Inc VAT
The 644HX2330 is a high amperage On-On-On toggle switch featuring a threaded lever and DP3T contacts. The switch features screw terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-On-On operation DP3T contacts Screw terminals Threaded 4x0.75mm lever Black 12x0.75mm bushing Rating: 10A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Contact configuration | DP3T |
| Contact material | Silver/Nickel Alloy |
| Contact rating | 10A 250VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 12.2mm |
| Panel thickness | 4.5mm |
| Product series | 600 |
| Switch operation | On-On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
