6421A-038K-1V APEM On-Off 12mm Locking Lever Toggle Switch SPST
by APEM
SKU 489880
MPN: 6421A-038K-1V
Availability:
8 in stock
Original price
£92.48
-
Original price
£92.48
Original price
£92.48
Inc VAT
£92.48
-
£92.48
Current price
£92.48
Inc VAT

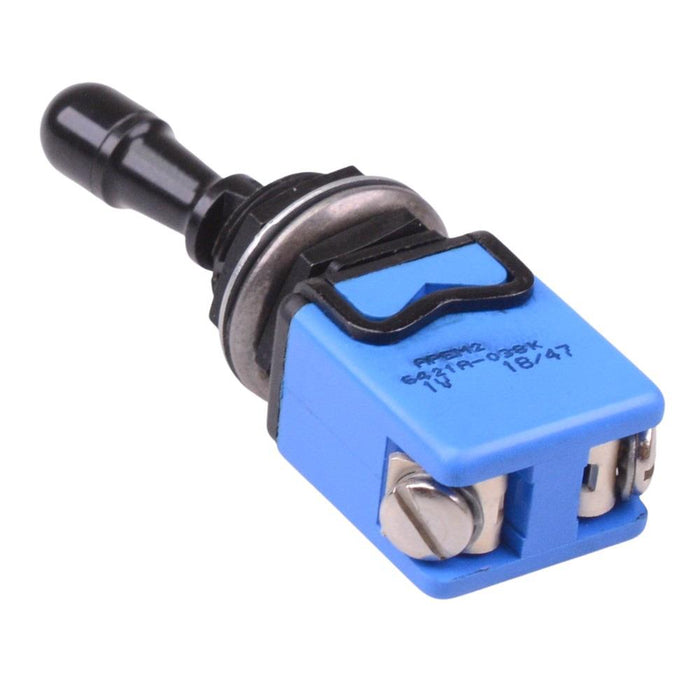

The 6421A-038K-1V is a high amperage On-Off toggle switch featuring a robust mechanism and locking lever in 1 position. The switch features screw terminals and are popular for a wide range of applications including automotive due to there reliability and rugged design.
On-Off operation SPST contacts Black lever with fluorescent tip 1 locked position lever Screw terminals Rating: 6.5A 30VDC Panel cut-out: 12.2mm Maximum panel thickness: 5mm
Specification
| Actuation | Latching |
| Contact configuration | SPST |
| Contact material | Silver |
| Contact rating | 6.5A 30VDC |
| Current rating | 6.5A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Panel thickness | 5mm |
| Product series | 6000 |
| Switch operation | On-Off |
| Terminal type | Screw |
| Voltage rating | 30VDC |
