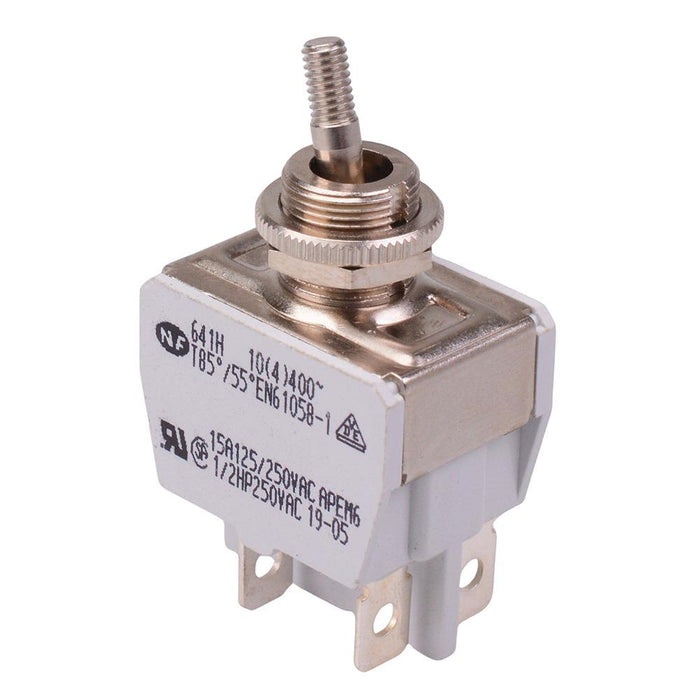

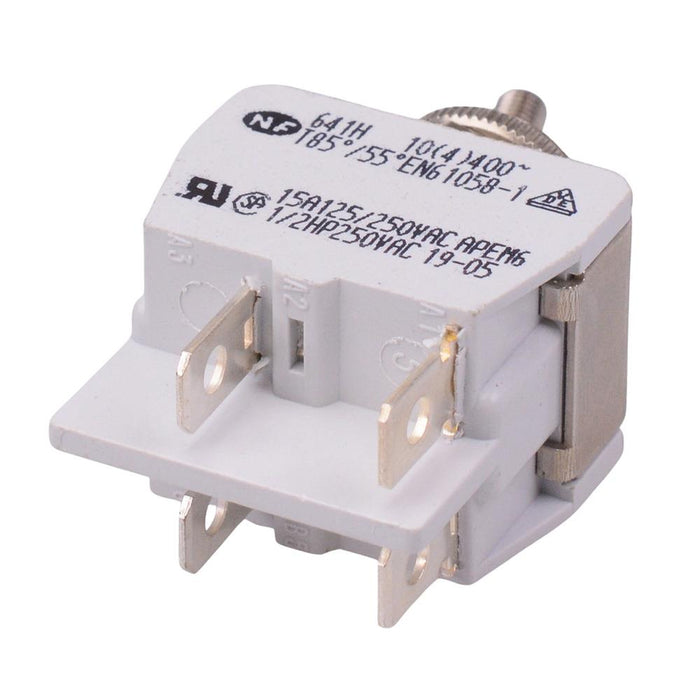

641H/2X2330 APEM On-Off 12mm Toggle Switch DPST 15A 250VAC
by APEM
SKU 489879
MPN: 641H/2X2330
Availability:
100 in stock
Original price
£13.94
-
Original price
£13.94
Original price
£13.94
£15.81
£15.81
-
£15.81
Current price
£15.81
The 641HX2330 is a high amperage On-Off toggle switch featuring a threaded lever and DPST contacts. The switch features screw terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-Off operation DPST contacts Screw terminals Threaded 4x0.75mm lever Black 12x0.75mm bushing Rating: 15A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | DPST |
| Contact Material | Silver/Nickel Alloy |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
