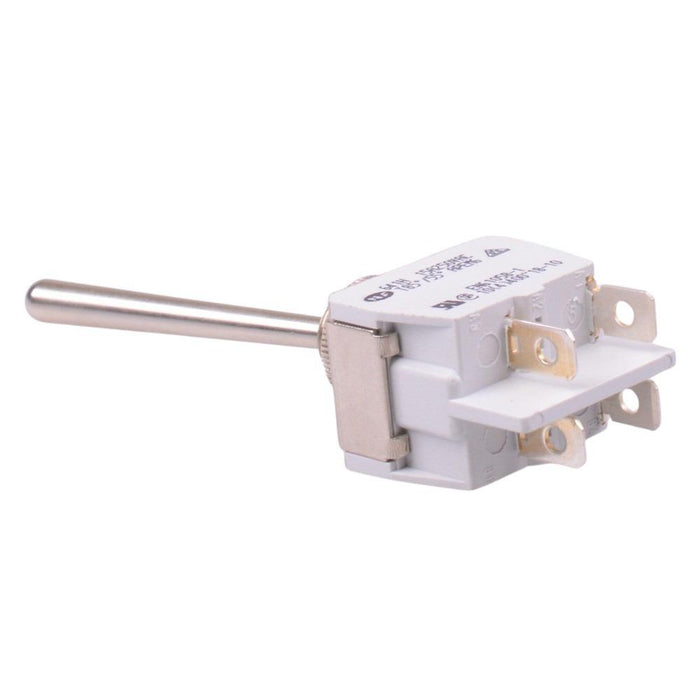

641H/2X2121 APEM On-Off 12mm Toggle Switch Long Lever DPST 15A
by APEM
SKU 489878
MPN: 641H/2X2121
Availability:
Only 5 left!
Original price
£14.51
-
Original price
£14.51
Original price
£14.51
Inc VAT
£14.51
-
£14.51
Current price
£14.51
Inc VAT
The 641H/2X2121 is a high amperage On-Off toggle switch featuring a long lever and DPST contacts. The switch features quick connect terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-Off operation DPST contacts Quick connect terminals Rating: 15A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm 49mm length lever UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Contact configuration | DPST |
| Contact material | Silver/Nickel Alloy |
| Contact rating | 15A 250VAC |
| Current rating | 15A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 12.2mm |
| Panel thickness | 4.5mm |
| Product series | 600 |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
