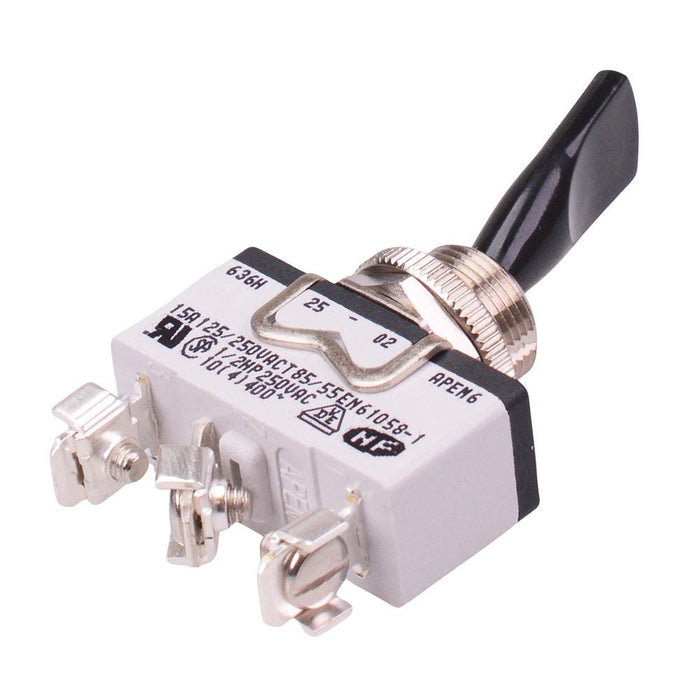

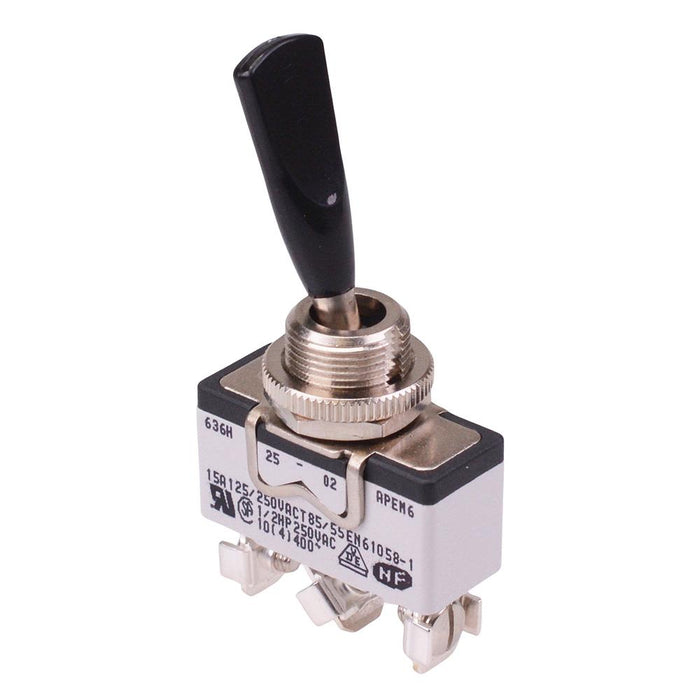

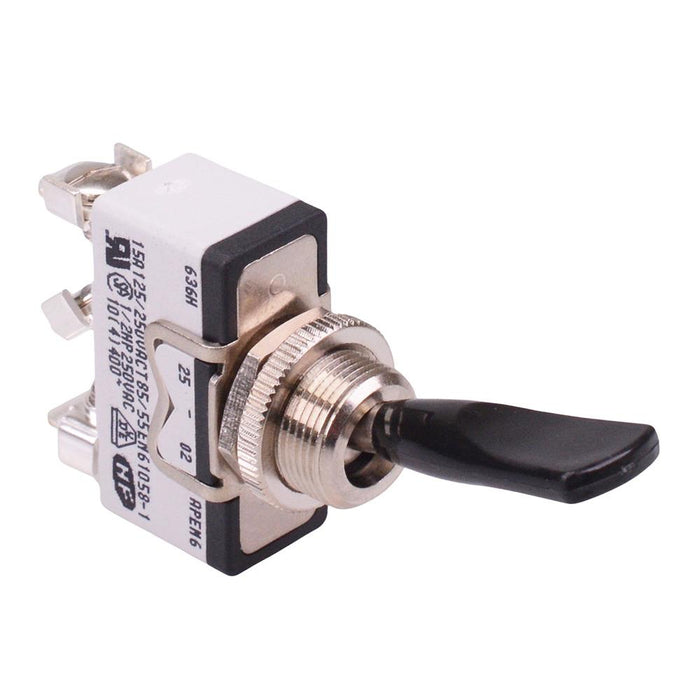

636HX2595 On-On Black Duckbill Lever 12mm Toggle Switch SPDT 15A APEM
by APEM
SKU 490493
MPN: 636HX2595
Availability:
22 in stock
Original price
£12.50
-
Original price
£12.50
Original price
£12.50
£12.50
£12.50
-
£12.50
Current price
£12.50
The 636HX2595 is a high amperage On-On toggle switch featuring a robust construction and SPDT contacts. The switch features screw terminals and duckbill lever making it popular for a wide range of applications including automotive and marine.
On-On operation SPDT contacts Screw terminals Rating: 15A 250VAC, 10A 24VDC, 15A 12VDC Peak current: 30A max. during 1/2 sine, 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm Dimensions: 62.8 x 29.5 x 14mm (height x width x depth) UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Back Order Lead Time | 110 Days |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Material | Silver / Nickel Alloy |
| Contact Rating | 15A 250VAC, 10A 24VDC, 15A 12VDC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-On |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
