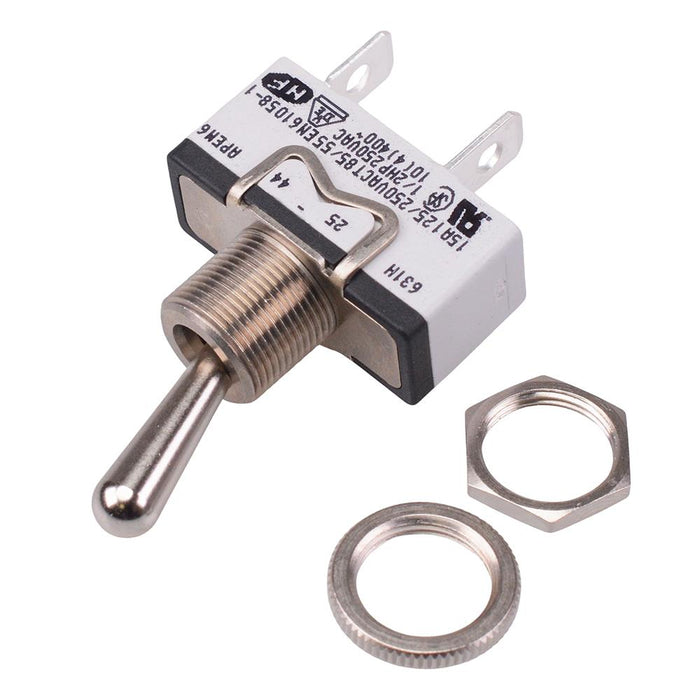

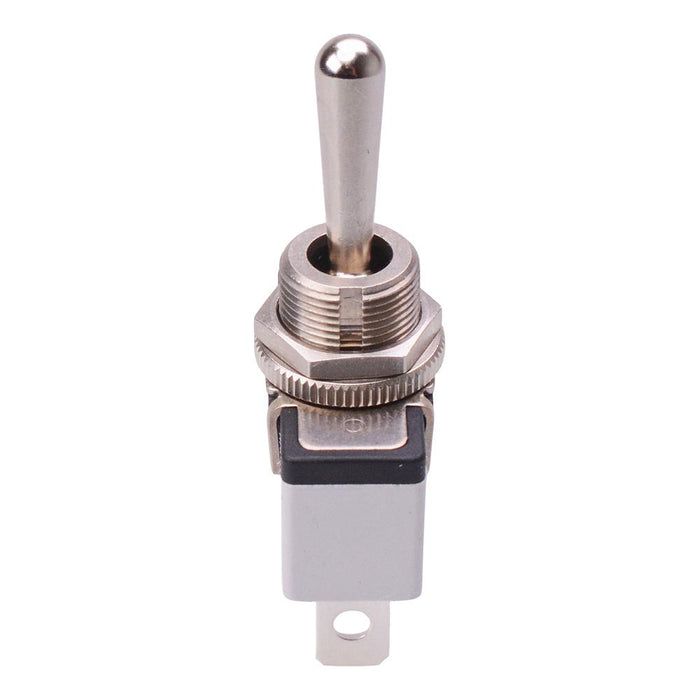

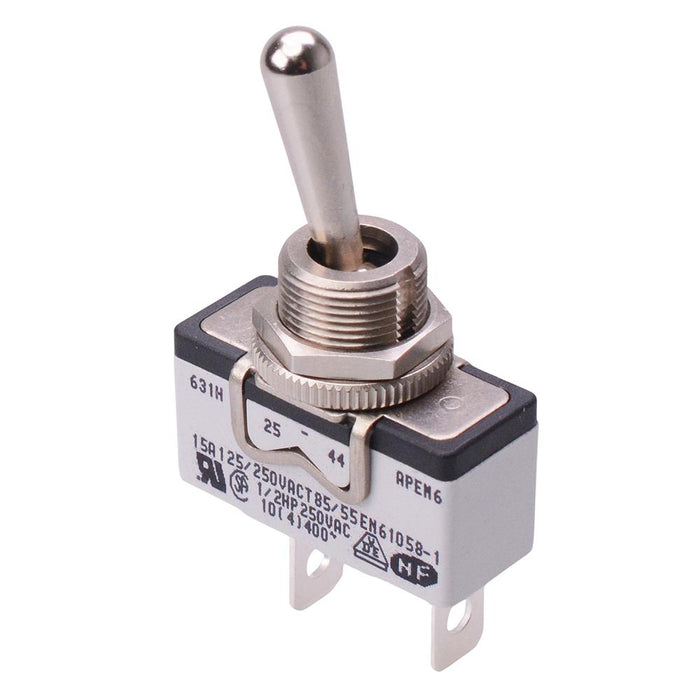

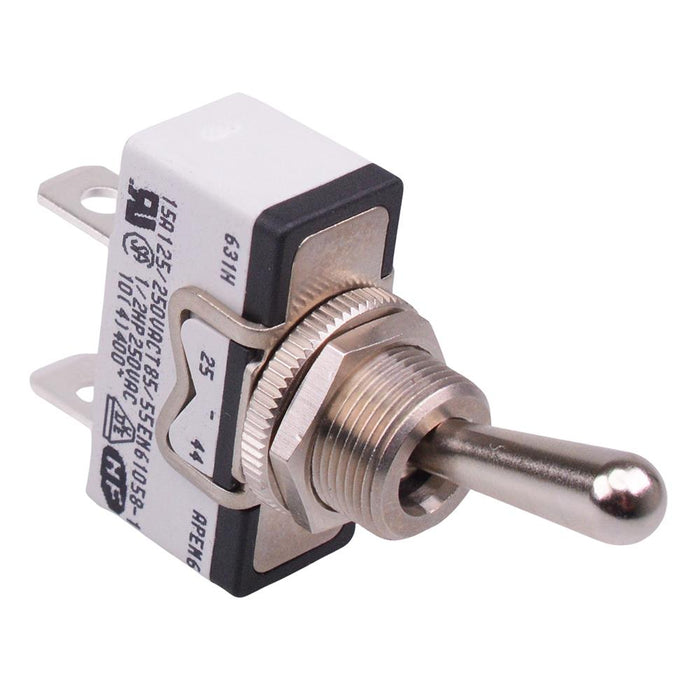

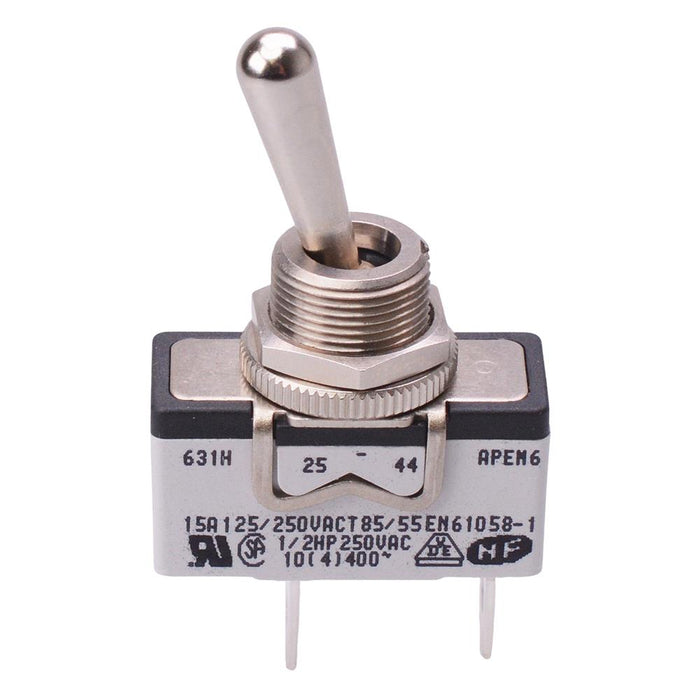

631H/2 On-Off Toggle Switch SPST 250V 15A APEM
by APEM
SKU 487127
MPN: 631H/2
Availability:
985 in stock
Original price
£6.86
-
Original price
£6.86
Original price
£6.86
£6.86
-
£6.86
Current price
£6.86
The 631H/2 is a high amperage On-Off toggle switch featuring a robust mechanism and SPST contacts. The switch features 6.35mm quick connect terminals and are popular for a wide range of applications due to there reliability and high current rating.
On-Off operation SPST contacts 6.35mm quick connect terminals Rating: 15A 250VAC Peak current: 30A max. during 1/2 sine, 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm Dimensions: 54.0 x 29.5 x 14mm (height x width x depth) UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | SPST |
| Contact Material | Silver / Nickel Alloy |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 6.5mm |
| Product Series | 600 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
