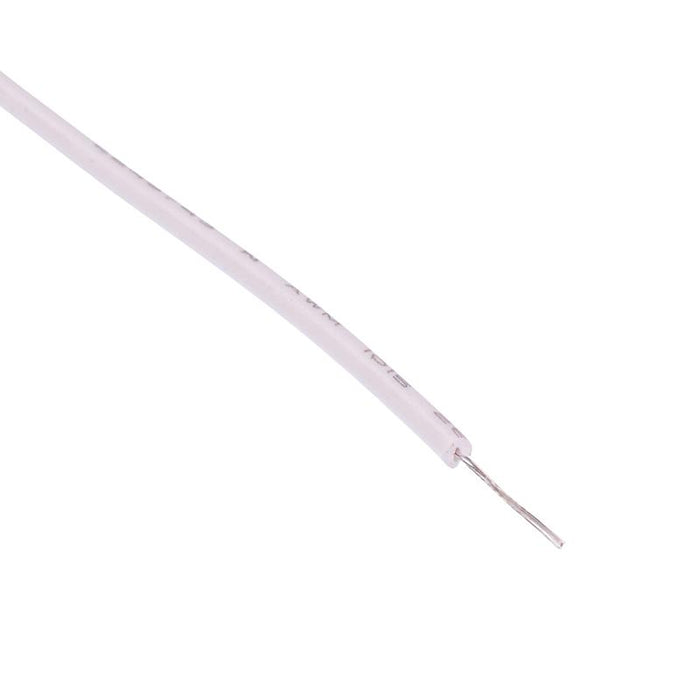

610m White UL1015 26AWG 7/0.16mm Tinned Copper Stranded Wire

SKU 990263

MPN: 990263

Out of stock
Sold out
Original price £75.39 - Original price £75.39
Original price
£75.39 Inc VAT
£75.39 - £75.39
Current price £75.39 Inc VAT
White 26AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.

  • Overall diameter: 2.0mm
  • Wide temperature range
  • Tinned copper conductor
  • Rated voltage: 600V
  • 7/0.16mm copper stranding
  • Supplied in a 610 metre coil
  • Specification
    Back order lead time 120 Days
    Colour White
    Conductor cross section 0.13mm²
    Conductor diameter 0.49mm
    Conductor material Tinned Copper
    Conductor stranding 7/0.16mm
    Current rating 2A
    Insulation material PVC
    Insulation thickness 0.76mm
    Operating temperature -30°C to 105°C
    Overall diameter 2.0mm
    Voltage rating 600V
    Wire gauge 26AWG
