6-Way 5.08mm Right Angle PCB Header Closed Ends Green 15A 300V

SKU 488465

MPN: STLZ950/06G-5.08-H-GREEN

Availability:
197 in stock
Original price £0.96 - Original price £0.96
Original price
£0.96 Inc VAT
£0.96 - £0.96
Current price £0.96 Inc VAT

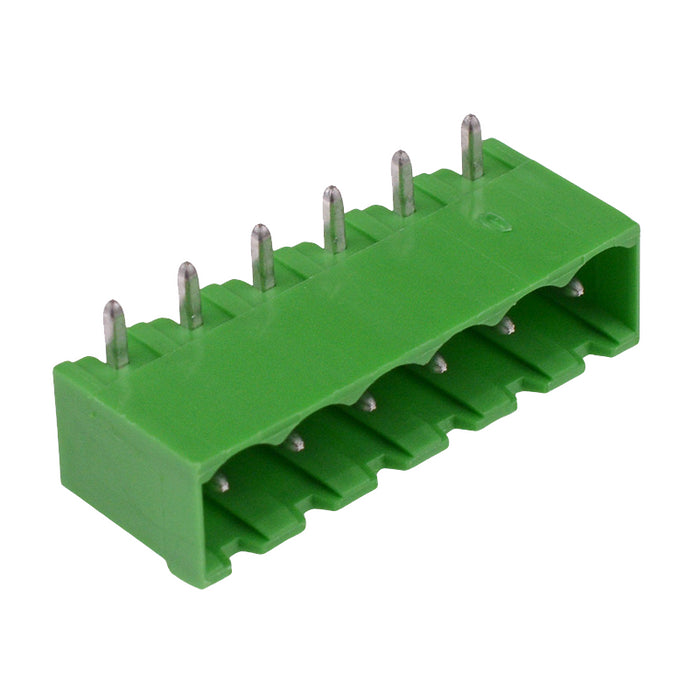

6 pole PCB header manufactured by PTR HARTMANN, featuring a 5.08mm pitch and horizontal wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.

  • 6 pole
  • 5.08mm pitch
  • Horizontal wire entry
  • Closed ends
  • Material: PA66
  • PCB hole diameter: 1.4mm
  • Rating: 15A 300V
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Copper Alloy
    Current rating 15A
    Housing material PA66
    Mounting type PCB Mount
    Number of ways 6
    Operating temperature -40°C to +105°C
    Pitch 5.08mm
    Voltage rating 300VAC
