6 Way 3.96mm Housing Connector

SKU 484683

MPN: 484683

2238 in stock
Original price £0.15 - Original price £0.15
Original price
£0.15 Inc VAT
£0.15 - £0.15
Current price £0.15 Inc VAT

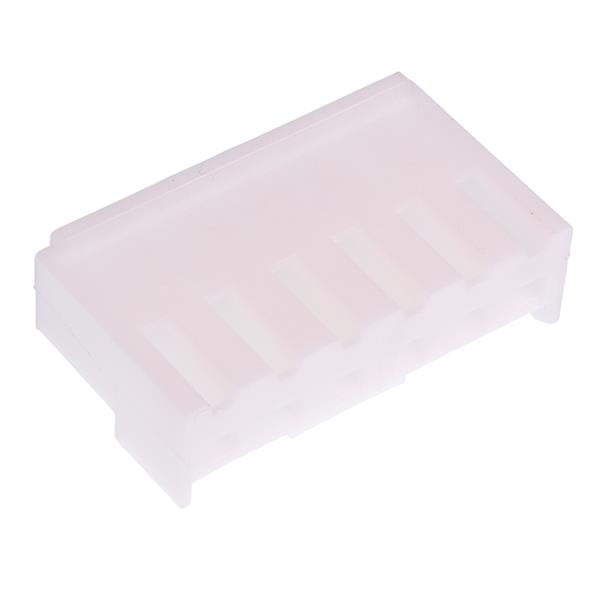

Single row 6 way pin housing featuring 3.96mm pitch and straight orientation. The housing is suitable as a replacement for JST VH connectors.

  • 3.96mm pitch
  • PA66 housing
  • Rated Current: 10A
  • Rated Voltage: 250V
  • Wire range: 18-26AWG
  • Specification
    Back order lead time 45 Days
    Contact material Tin Plated Brass
    Current rating 10A
    Housing material PA66
    Moq 5
    Mounting type Cable Mount
    Number of pins 26
    Number of ways 6
    Operating temperature -25°C to +85°C
    Pitch 3.96mm
    Termination method Crimp
    Voltage rating 250VAC
    Wire range 26-18AWG
