6 Way 150A Power Distribution Busbar
SKU 489050
MPN: SE61033-6SC
Availability:
Out of stock
Sold out
Original price
£7.01
-
Original price
£7.01
Original price
£7.01
£7.01
£7.01
-
£7.01
Current price
£7.01

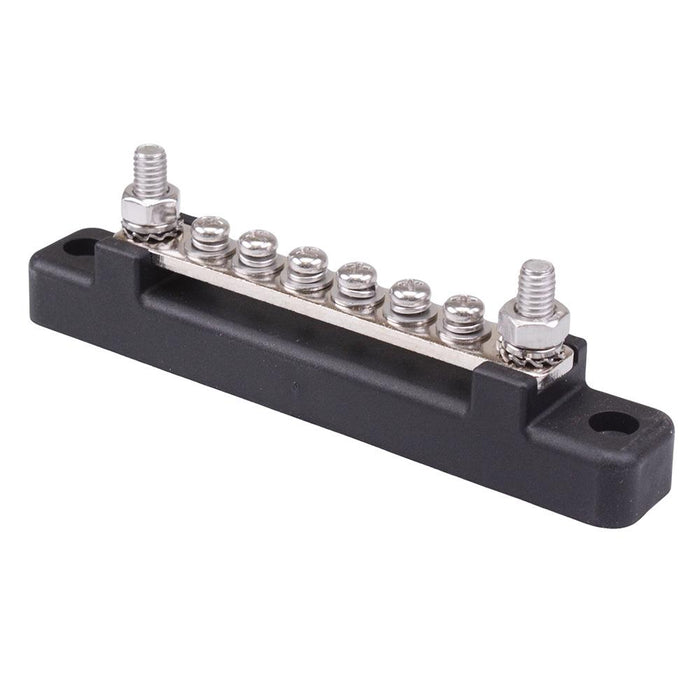

6 way power distribution busbar featuring M4 screw terminals and 2*M6 stud terminals. The stud terminals are used as the main power connections and the screw terminals for distributing the power. The busbar comes complete with fastening screws and protective cover.
6*M4 screw terminals 2*M6 stud terminals Protective cover Current rating: 130A AC / 150A DC Voltage rating: 300VAC / 48VDC Dimensions: 120 x 20 x 42.5mm (length x width x height)
Specification
| Back Order Lead Time | 150 |
| Colour | Black |
| Current Rating | 150A |
| MOQ | 1 |
| Mounting Type | Chassis Mount |
| Termination Method | M4 / M6 Stud |
| Voltage Rating | 48VDC |
