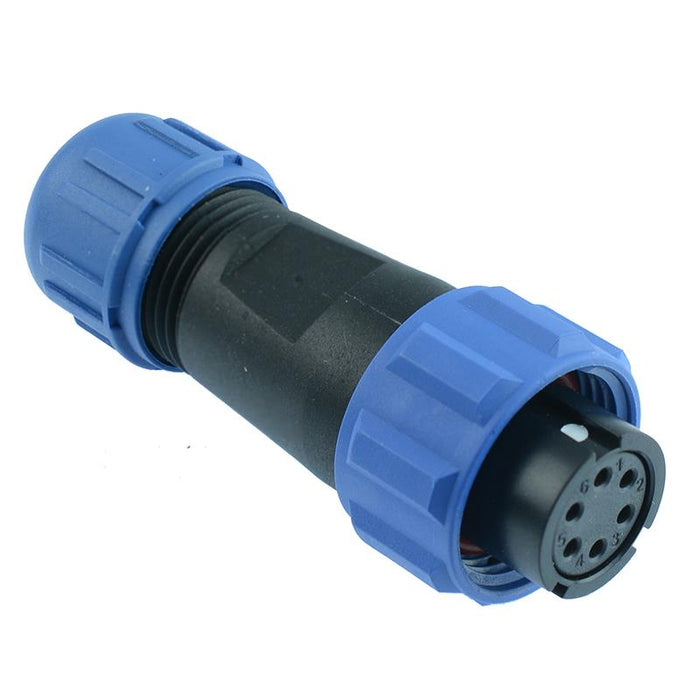

6 Pin Waterproof Female Plug Cable Connector IP68
SKU 482009
MPN: 482009
Availability:
Out of stock
Sold out
Original price
£3.04
-
Original price
£3.04
Original price
£3.04
Inc VAT
£3.04
-
£3.04
Current price
£3.04
Inc VAT
6 way female plug featuring IP68 protection rating suitable for applications requiring a waterproof and rugged connector.
Outer cable diameter: 4.5-6mm Protection level: IP68 Rating: 5A 125V Solder termination Rated for 500 mating cycles Dimensions: 48 x 18.8mm (length x diameter)
Specification
| Back order lead time | 30 Days |
| Contact material | Gold Plated Brass |
| Current rating | 5A |
| Gender | Female |
| Housing material | PA66 |
| Mounting type | Cable Mount |
| Number of ways | 6 |
| Operating temperature | -25°C to +80°C |
| Protection level | IP68 |
| Termination method | Solder |
| Thread size | W13 |
| Voltage rating | 125V |
| Wire range | 4-6.5mm Diameter |
