6.35mm Stereo Solder Switched Jack Socket S4/BBB CL1322A

by CLIFF
SKU 486067

MPN: CL1322A

Availability:
121 in stock
Original price £2.47 - Original price £2.47
Original price
£2.47 Inc VAT
£2.47 - £2.47
Current price £2.47 Inc VAT

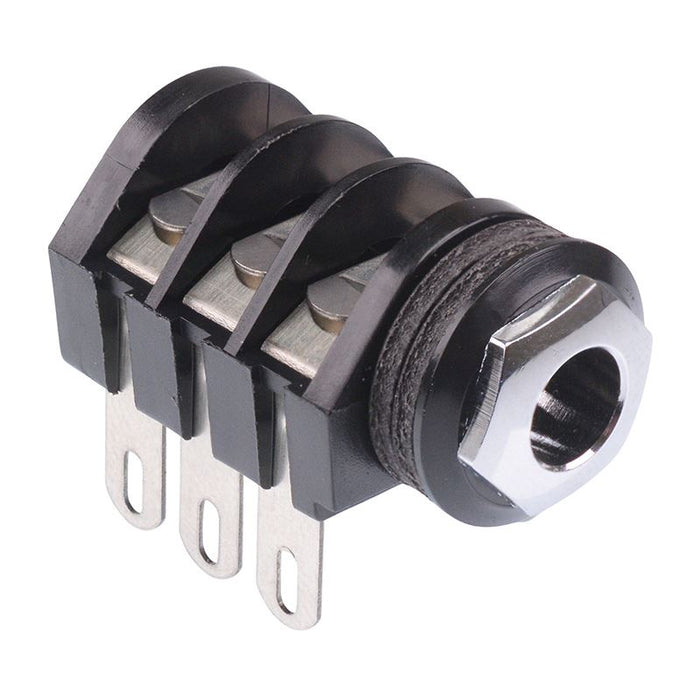

The CL1322A is a 6.35mm stereo switched jack socket featuring a metal bezel and solder tags, suitable for a wide range of audio applications.

  • 6.35mm stereo
  • Solder tags
  • Switched contacts
  • Panel cut-out: 11.2mm
  • Maximum current: 5A
  • Withstand voltage: 2000V DC Min
  • Specification
    Back order lead time 5 Days
    Colour Black
    Current rating 5A
    Gender Female
    Housing material Nylon
    Mounting type Panel
    Operating temperature -10°C to +70°C
    Panel cut out 11.1mm
    Termination method Solder
