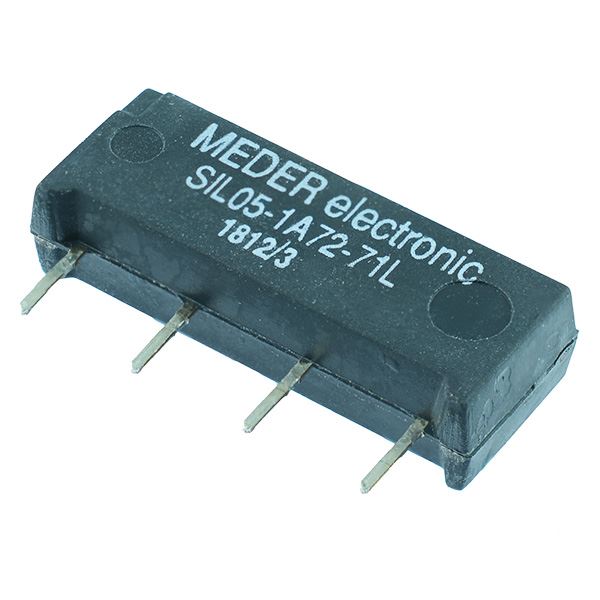

5VDC Normally Open Reed Relay SPST SIL05-1A72-71L

by Meder
SKU 481078

MPN: SIL05-1A72-71L

Availability:
16 in stock
Original price £0
Original price £3.12 - Original price £3.12
Original price
Current price £3.12(inc. VAT)
£3.12 - £3.12
Current price £3.12
 More payment options
Quantity Discounts
Buy 10 - 24Get 11% off£2.78 each
Buy 25 - 49Get 16% off£2.62 each
Buy 50 - 99Get 21% off£2.46 each
Buy 100+Get 25% off£2.34 each
The SIL05-1A72-71L is a general purpose 5V single in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with SIL sockets.

  • Coil voltage: 5VDC
  • Pull-in voltage: 3.5VDC Max
  • Drop-out voltage: 0.75VDC Min
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VAC
  • Maximum switching current: 0.5A
  • Maximum carry current: 1A
  • Maximum release time: 0.7ms
  • Dimensions: 19.2 x 5.08 x 7.62mm
  • Specification
    Ambient Temperature -20°C to +70°C
    Back Order Lead Time 5 Days
    Coil Resistance 500Ω
    Coil Voltage 5VDC
    Contact Arrangement SPST-NO
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 200VAC
    Mounting Type PCB
    Number of Contacts 4
    Terminal Type Through Hole
