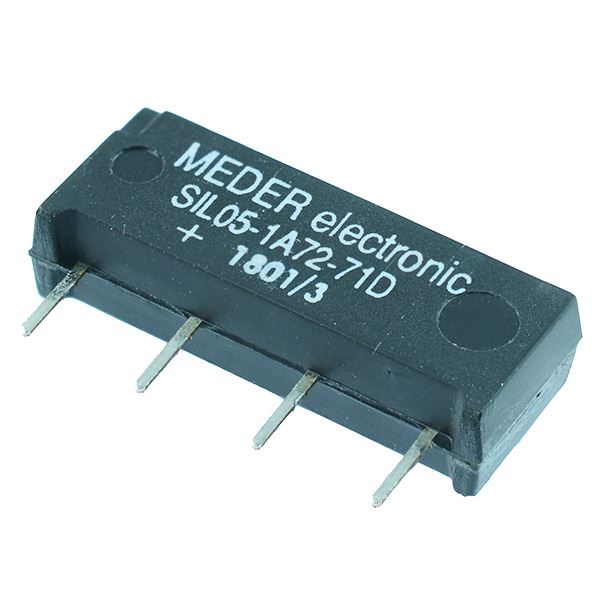

5VDC Normally Open Reed Relay SPST SIL05-1A72-71D

by Meder
SKU 481074

MPN: SIL05-1A72-71D

Availability:
19 in stock
Original price £2.70 - Original price £2.70
Original price
£2.70
£2.70 - £2.70
Current price £2.70
The SIL05-1A72-71D is a general purpose 5V single in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with SIL sockets.

  • Coil voltage: 5VDC
  • Relay features a protection diode
  • Pull-in voltage: 3.5VDC Max
  • Drop-out voltage: 0.75VDC Min
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VAC
  • Maximum switching current: 0.5A
  • Maximum carry current: 1A
  • Maximum release time: 0.7ms
  • Dimensions: 19.2 x 5.08 x 7.62mm
  • Specification
    Ambient Temperature -20°C to +70°C
    Back Order Lead Time 5 Days
    Coil Resistance 500Ω
    Coil Voltage 5VDC
    Contact Arrangement SPST-NO
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 200VAC
    Mounting Type PCB
    Number of Contacts 4
    Terminal Type Through Hole
