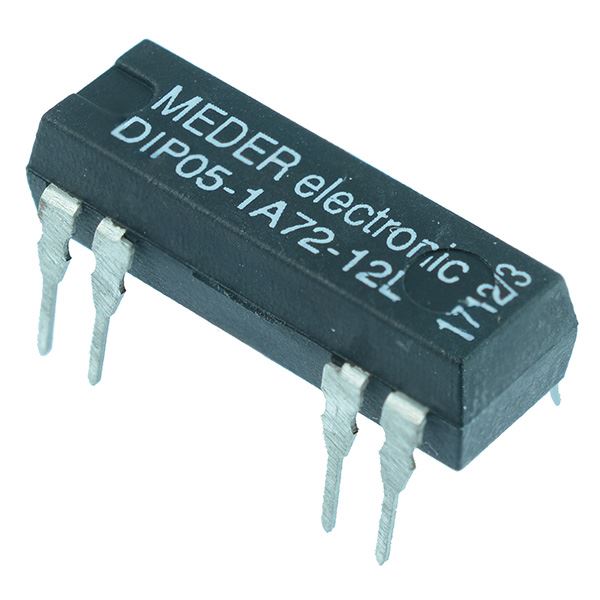

5VDC Normally Open Reed Relay SPST DIP05-1A72-12L
by Meder
SKU 481075
MPN: DIP05-1A72-12L
Availability:
Out of stock
Sold out
Original price
£4.05
-
Original price
£4.05
Original price
£4.05
Inc VAT
£4.05
-
£4.05
Current price
£4.05
Inc VAT
The DIP05-1A72-12L is a general purpose 5V dual in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with DIP relays.
Features magnetic shield 12 Pin Out Coil voltage: 5VDC Pull-in voltage: 3.5VDC Max Drop-out voltage: 0.75VDC Min Maximum switching power: 10W Maximum switching voltage: 200VAC Maximum switching current: 0.5A Maximum carry current: 1A Maximum release time: 0.1ms
Specification
| Ambient temperature | -35°C to +95°C |
| Back order lead time | 5 Days |
| Coil resistance | 500Ω |
| Coil voltage | 5VDC |
| Contact arrangement | SPST-NO |
| Maximum continuous voltage | 7.5VDC |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 200VAC |
| Mounting type | PCB |
| Number of contacts | 8 |
| Terminal type | Through Hole |
