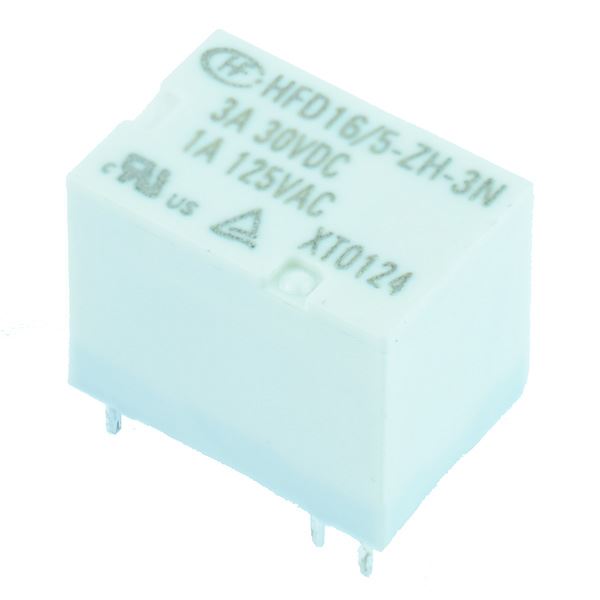

5V Subminiature Signal PCB Relay 5A SPDT HFD16/5-ZH-3N

by HongFa
SKU 481670

MPN: HFD16/5-ZH-3N

Availability:
226 in stock
Original price £0.82 - Original price £0.82
Original price
£0.82
£0.82 - £0.82
Current price £0.82
Subminiature signal relay manufactured by HongFa featuring a 5V coil voltage and SPDT contacts. The relay is suitable for through-hole PCB applications.

  • Coil voltage: 5V
  • Contact configuration: SPDT
  • Contact Rating: 1A 125VAC, 3A 30VDC
  • Maximum switching voltage: 250VAC, 220VDC
  • Maximum switching current: 8A(30VDC)
  • Coil power: 200mW
  • Dimensions: 15.7 x 10.6 x 11.8mm (Length x Width x Height)
  • Specification
    Ambient Temperature -40°C to +85°C
    Back Order Lead Time 30 Days
    Coil Resistance 120Ω
    Coil Voltage 5VDC
    Contact Arrangement SPDT
    Maximum Continuous Voltage 6.5VDC
    Maximum Switching Current 8A
    Maximum Switching Voltage 250VAC / 220VDC
    Mounting Type PCB
    Number of Contacts 5
    Power Consumption 0.2W
    Terminal Type Through Hole
    Request a quote
