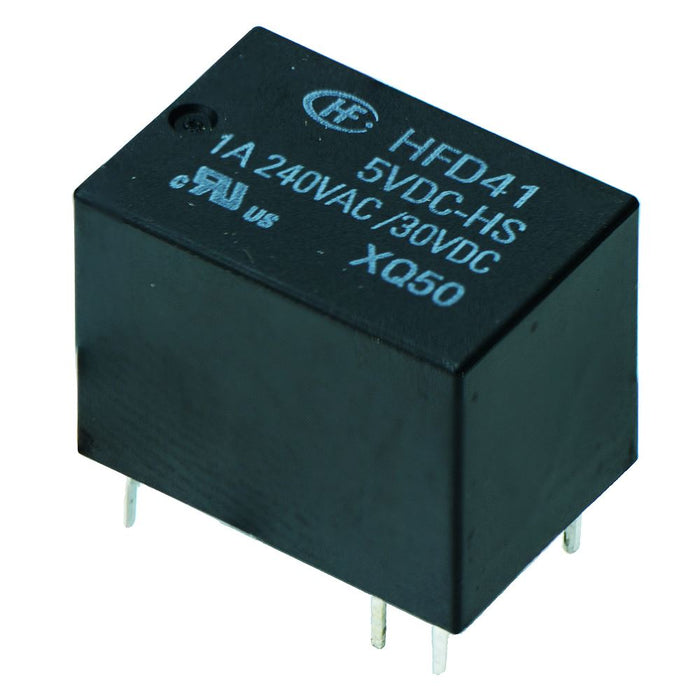

5V Subminiature PCB Signal Relay 1A SPDT HFD41

by HongFa
SKU 550018

MPN: HFD41-05-H-S

Availability:
7 in stock
Original price £1.01 - Original price £1.01
Original price
£1.01 Inc VAT
£1.01 - £1.01
Current price £1.01 Inc VAT
Sub-miniature sealed signal relay. SPDT contact configuration suitable for PCB mounting.

  • Coil Voltage: 5VDC
  • 1A Contact Rating
  • Coil power: 200mW
  • Sealed construction
  • Maximum Switching Current: 5A
  • 15.7 x 11 x 12mm
  • Maximum switching voltage: 240VAC, 30VDC
  • Specification
    Ambient temperature -25°C to +70°C
    Back order lead time 30 Days
    Coil resistance 120Ω
    Coil voltage 5VDC
    Contact arrangement SPDT
    Maximum continuous voltage 6.5VDC
    Maximum switching current 5A
    Maximum switching voltage 240VAC / 30VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.2W
    Terminal type Through Hole
